Eiko AAL1-PS100-50T3-U-PC6

AAL1-PS100-50T3-U-PC6 Product Description

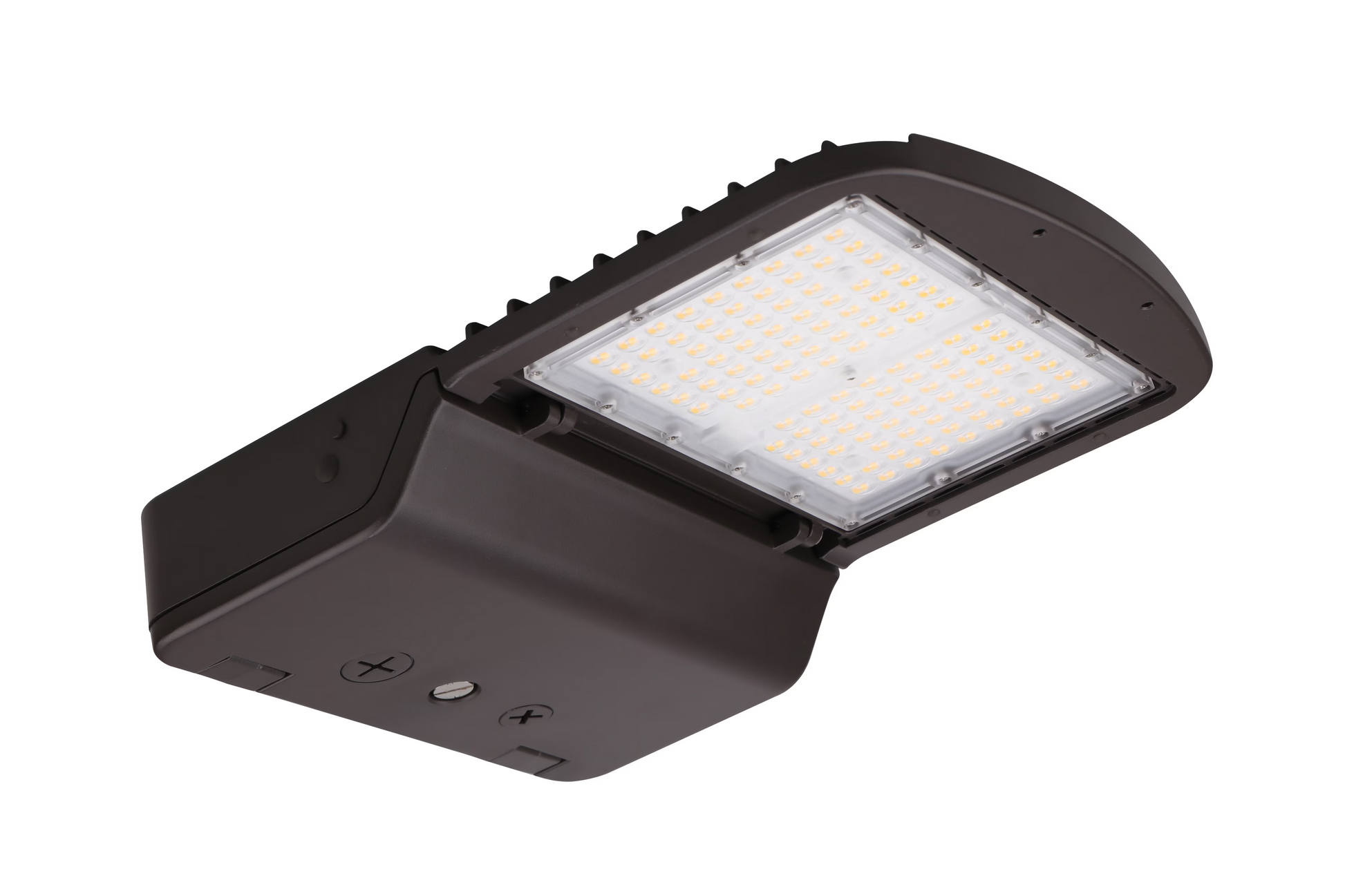

The AAL1 LED Area Light offers 100W, 80W, or 60W options, delivering up to 14,000 lumens with 140 lm/W efficacy. It operates at 120-277V and features 0-10V dimming, with dim-to-off. With a 5000K color temperature, it replaces up to 400W HID fixtures. This durable light includes 12VDC auxiliary output, surge protection, and a wide operating temperature range of -40°F to 122°F. It’s built with a bronze housing, polycarbonate lens, and is suitable for wet locations.

Specifications:

Brand: Eiko
SKU: AAL1-PS100-50T3-U-PC6
UPC: 999999006059
Watt: 100W / 80W / 60W
CCT: 5000K
Lumens: 14,000, 11,200, 8,400 lm
Efficacy: 140 lm/W
Voltage: 120-277V
Traditional Wattage Equivalent: Up to 400W HID
Dimming: 0-10V dimming, dim-to-off
Auxiliary Voltage: 12VDC, 100mA max
Surge Protection: 10kV included, 20kV optional
Power Factor: >0.9
Total Harmonic Distortion (THD): <20%
Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
High Efficacy: Up to 140 lm/W
CRI: >80
3-pin NEMA Twist-lock Photocel
