Eiko AAL1-PS100-40T3-U AAL1

AAL1-PS100-40T3-U AAL1 Product Description

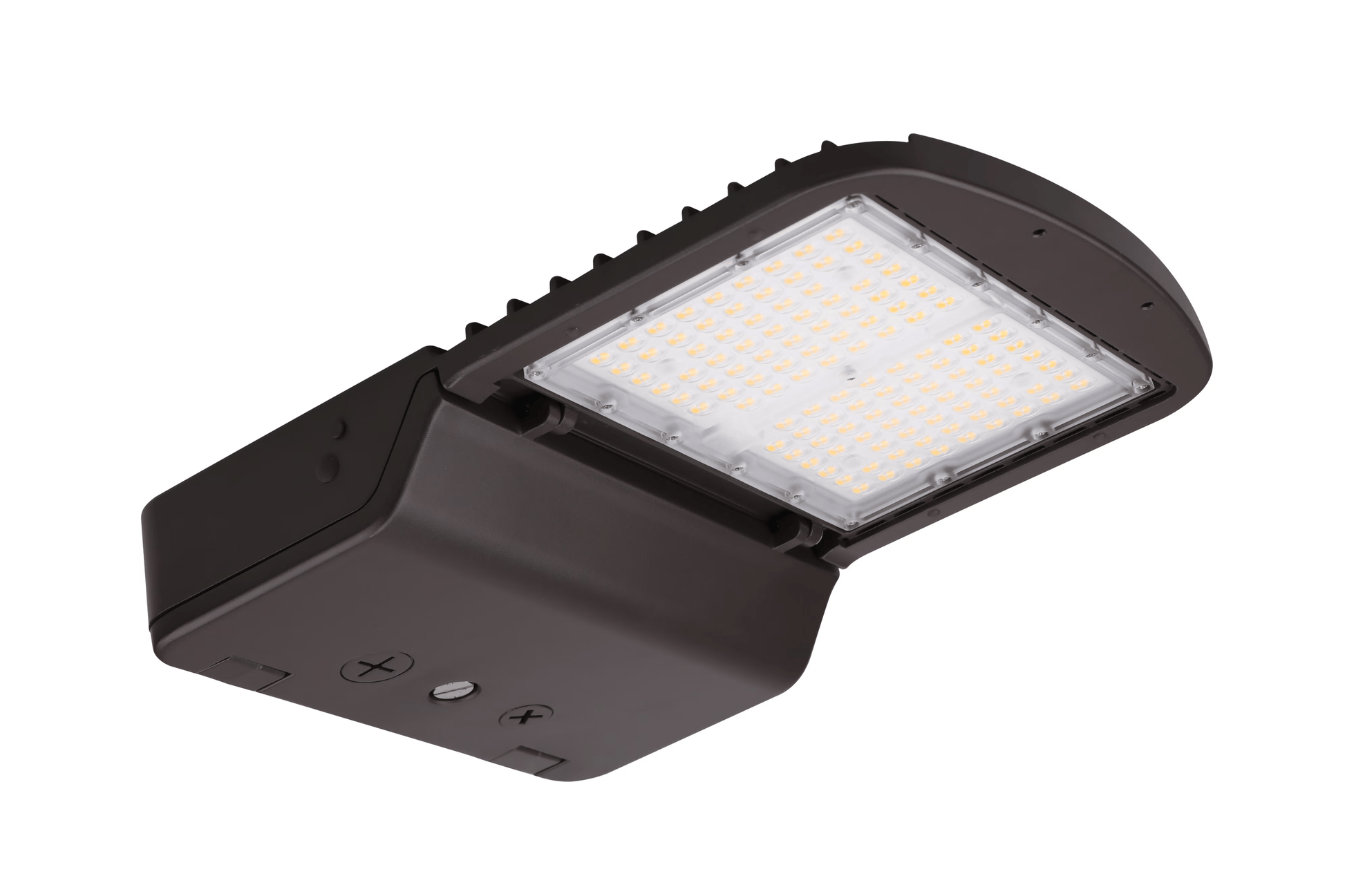

The EiKO AAL1-PS100-40T3-U is a high-performance LED area light designed for outdoor commercial and industrial applications. Featuring PowerSet adjustable wattage (100W/80W/60W) and up to 14,000 lumens, it replaces 175-320W HID fixtures, delivering 140 lm/W efficacy at 4000K CCT with 80+ CRI. Its IP65-rated bronze housing ensures durability in wet locations, while 0-10V dimming and 10kV surge protection (20kV optional) enhance reliability. The polycarbonate lens and multiple mounting options provide versatility, and the tool-less access junction box simplifies installation and maintenance.

Specifications:

Brand: Eiko
Voltage: 120-277VAC
Lumens (lm): 14,000/11,200/8400 lm
Wattage: 100/80/60W
Efficacy (lm/W): 140 lm/W
CCT: 4000K
CRI: 80+
Dimming: 0-10
Replacement For/Equivalent: up to 175-320W HID
DLC Version: DLC Premium
T20 Status: Exempt
IP Rating: IP65
Wet/Damp/Dry Location: Wet
IK Rating: 8
RoHS Compliant: Yes
FCC Compliant: Yes
UL: Yes
Dimensions (L x W x H): L: 13 3/4" (349 mm), W: 10 5/16" (262 mm), H: 2 5/16" (74 mm)
Housing Color: Bronze
Lens Material: Polycarbonate (PC)
Operating Temp Range (°F/°C): -40F to 122F (-40C to 50C)
Driver Surge Protection (kV): L/N-PE: 10kV, L-N: 10kV
Additional Surge Protection (kV): 10kV included, 20kV option
Auxiliary Output: 12V, 100mA
SKU: AAL1-PS100-40T3-U
UPC: 31293136077
