Eiko AAL1-PS100-40T2-U

AAL1-PS100-40T2-U Product Description

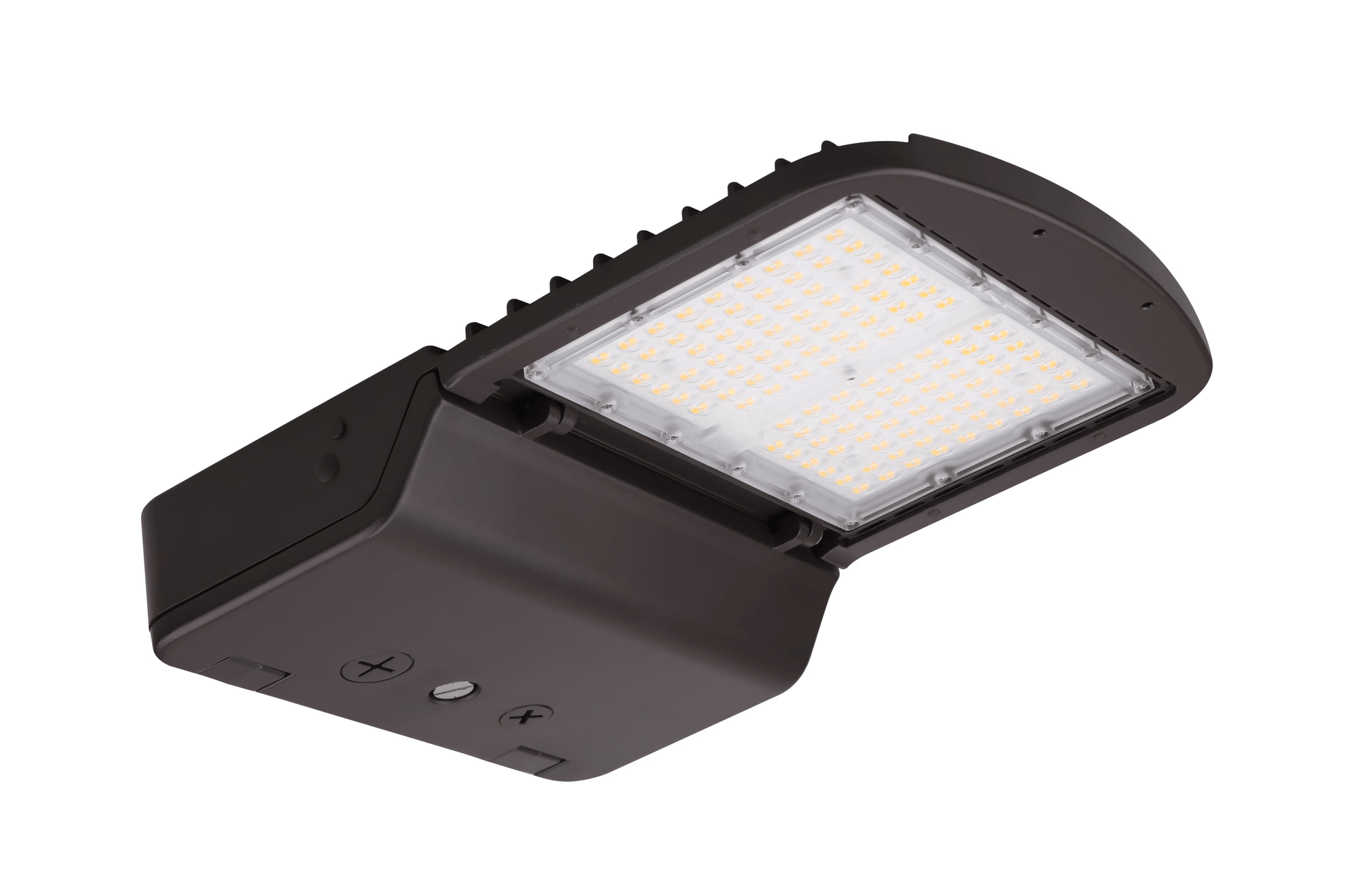

A high-performance, DLC Premium-rated area light with selectable wattage (100/80/60W) and lumen output (14,000/11,200/8,400 lm), delivering an efficacy of 140 lm/W. Designed for wet locations (IP65) with durable bronze housing and a polycarbonate lens. Features 0-10V dimming, 10kV surge protection, and a wide operating temperature range (-40°F to 122°F). Ideal for parking areas, roadways, and security lighting.

Specifications:

Brand: Eiko
Voltage: 120-277VAC
Lumens (lm): 14,000/11,200/8400 lm
Wattage: 100/80/60W
Efficacy (lm/W): 140 lm/W
CCT (K): 4000K
CRI: 80+
Dimming: 0-10V
Replacement For/Equivalent: Up to 175-320W HID
DLC Version: DLC Premium
T20: Exempt
IP Rating: IP65
Wet/Damp/Dry Location: Wet
IK Rating: 8
RoHS Compliant: Yes
FCC Compliant: Yes
cULus Listed: Yes
Dimensions (L x W x H): L: 13 3/4" (349 mm), W: 10 5/16" (262 mm), H: 2 5/16" (74 mm)
Housing Color: Bronze
Lens Material: Polycarbonate (PC)
Ambient Temp Range: -40°F to 122°F (-40°C to 50°C)
Driver Surge Protection (kV): L/N-PE: 10kV, L-N: 10kV
Auxiliary Output: 12V, 100mA
SKU: AAL1-PS100-40T2-U
UPC: 31293147028
