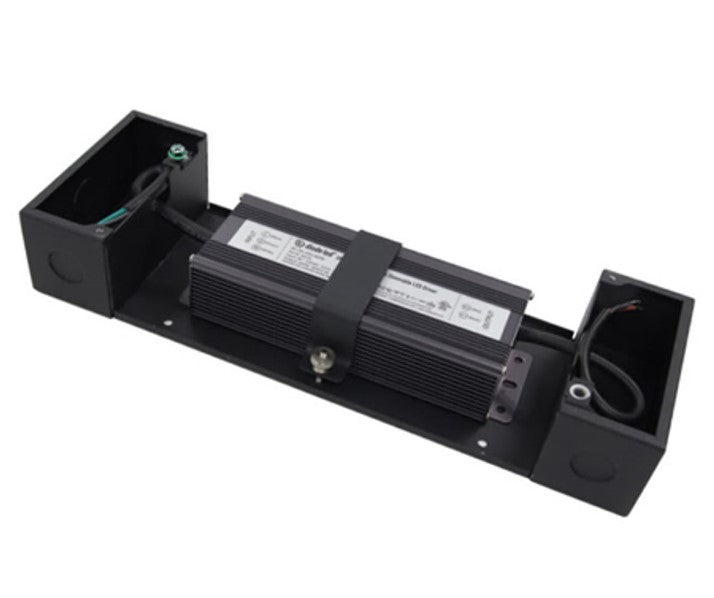

Diode LED DI-TD-24V-45W-LPL 45 Watt Omnidrive Electronic Dimmable LED Driver and Lo-Pro Large Jbox Combo 24V DC
2 sold in last 8 hours
customers are viewing this product
Diode LED DI-TD-24V-45W-LPL
DI-TD-24V-45W-LPL Product DescriptionDiode LED designed the patented LO-PRO® Junction Box Series– a unique, multipurpose electrical enclosure– to meet electrical code requirements as well as cost saving measures with easy installation of LED power suppliesin a wide range of environments. The truly amazing benefit of this enclosure is the UL Listed Driver from select LED power supplies available from Diode LED.
Diode LED recognized a tremendous demand for a solution that enabled contractors to provide an electrical box that not only secured a power supply, but also certifies the power supply as UL Listed when ordered with the UL Listed electrical box. It’s the ultimate solution for commercial projects requiring products with the highest certification to meet strict inspections.
MULTIPLE UL CERTIFICATIONS
UL 2108 (UL# E469769) LED LOW-VOLTAGE POWER UNIT
Certified as a listed LED low-voltage power unit. Optional - only applies when purchased as a driver & j-box combo. See ordering options. A UL E469769 sticker will be placed on the outside of the LO-PRO box certifying the product as an LED low-voltage power unit.
UL 508A (UL# E486215) INDUSTRIAL CONTROL PANEL
Type 1 enclosure - indoor. Can be used as a standard j-box for any component. This certification always applies to the LO-PRO box.
UL 1598 (UL# E485321) LUMINAIRE FITTING
Certified for field installation with Class 2 LED driver models and lighting systems outlined on the next page. This certification always applies to the LO-PRO box.
Output Voltage: 24V
Input Voltage: 120V
Knockouts: 0.5 in. knockouts
Material: Powder-coated stainless steel
Certification: UL Listed 1598, 508A & 2108
Stainless Steel Construction
Durable, powder-coated and corrosionresistant.
Intuitive mounting design makes installation easy for a variety of power supplies, controls and electrical equipment.
Ventilation holes keep out dust while allowing heat to easily escape.
Connection to conduit entry is easy with eight (8) knockout options, fitting 0.5 in. strain reliefs.
About Diode LED:Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
