Diode LED DI-TB8-60JPR-TTT-25B

DI-TB8-60JPR-TTT-25B Product Description

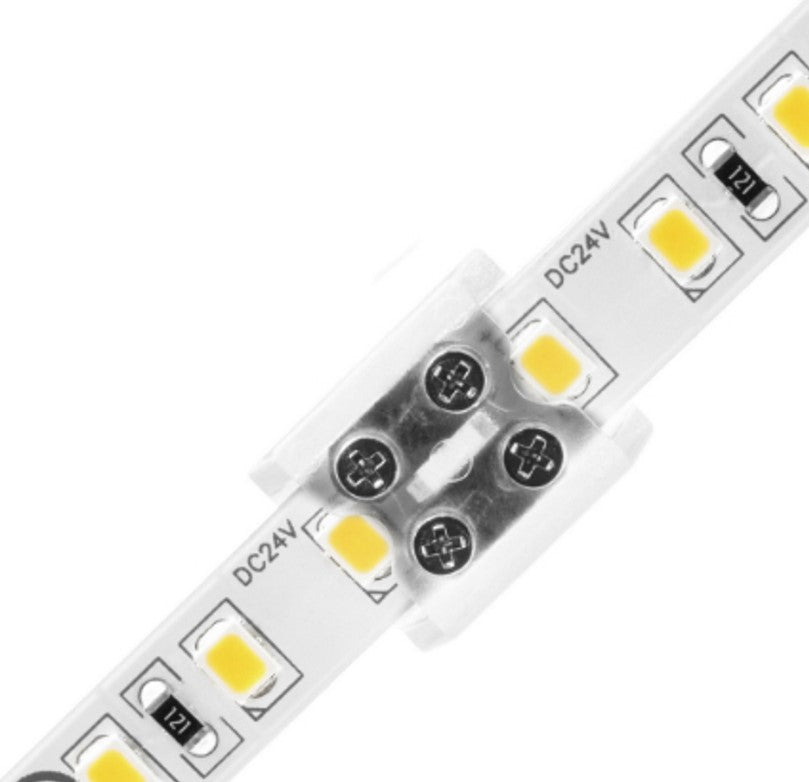

Create easy, fast, and secure tape light connections with the new Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.

Specifications:

Works with 8mm wide tape light only
Voltage 12 - 24VDC
Max. Amperage 12V - 5A / 24V - 4A
Wire Gauge 16 AWG - 20 AWG
Dimensions 0.63 x 0.5 x 0.23 in. (L x W x H)
Environment Indoor
Ambient Temperature -4° - 122°F (-20° - 50°C)
Warranty 5-Year Warranty

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
