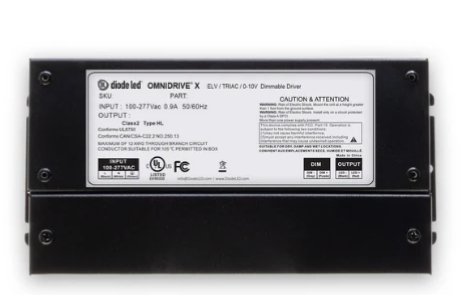

Diode LED DI-ODX-24V300W-J
DI-ODX-24V300W-J Product Description
The Diode LED is a high-performance 300-watt constant voltage 24V DC LED driver designed for demanding architectural, commercial, and residential LED lighting systems. Featuring universal 120-277VAC input, this premium driver supports ELV, TRIAC, and 0-10V dimming in a single unit, delivering exceptional dimming performance down to dark depending on the installation.
Specifications:
Brand: DIODE LED
SKU / MPN: DI-ODX-24V300W-J
Product Type: Constant Voltage Dimmable LED Driver
Series: OMNIDRIVE® X
Maximum Output Power: 300 Watts
Output Voltage: 24V DC
Input Voltage: 100-277VAC, 50/60Hz
Dimming: ELV, TRIAC, and 0-10V Dimming
Dimming Performance: 0.1% Performance Dimming, Dim to Dark (Installation Dependent)
Efficiency: ≥83%
Minimum Load: No Minimum Load
Input Connection: Wire Leads
Output Connection: Wire Leads
Internal Protection: Automatic Shutdown with Auto Recovery After Fault Removal
Operating Temperature: -22°F to 158°F (-30°C to 70°C)
Ambient Temperature: -40°F to 140°F (-40°C to 60°C)
Working Humidity: 20% to 95% RH, Non-Condensing
Environment: Outdoor / Wet Location (NEMA 3R)
Junction Box: Required and Included (NEMA 3R)
Dimensions: 10.95 × 4.33 × 1.92 in. (L × W × H)
Class Rating Class 2: No
Certifications: cULus Listed (US & Canada), ANSI/UL 1310 Class P Power Unit, FCC Part 15 Compliant, Title 24 JA8 Compliant
Warranty: 5-Year Limited Warranty
Compatible Applications: LED Tape Light, Cove Lighting, Architectural Lighting, Commercial Lighting, Hospitality, Retail Displays, Linear LED Fixtures, and Custom 24V DC LED Systems
Typical Dimming Controls: Compatible with Select Lutron®, Leviton®, Legrand®, and Other ELV, TRIAC, and 0-10V Dimmers
Case Quantity: 1 Driver
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
