Diode LED DI-DMX-DE3

DI-DMX-DE3 Product Description

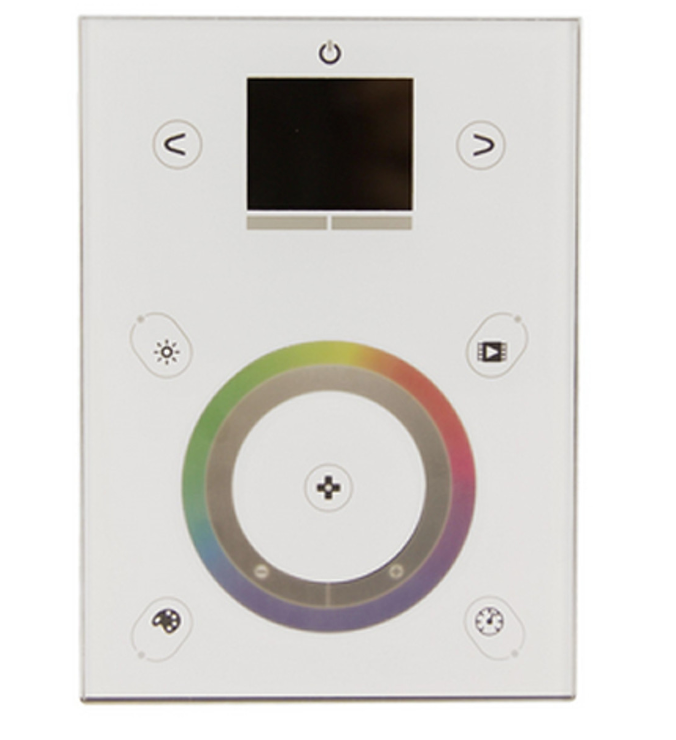

Our most robust DMX controller, the STICK-DE3 can store up to 500 scenes across 10 separate zones and features a full-color display for operational and zone-related information. The feature-rich lighting controller has been designed to provide a control solution for the most demanding of projects, whilst maintaining an easy-to-use panel of touch-sensitive buttons. The controller integrates a graphical color screen allowing scene photos to be displayed. Easily view the selected zone, scene name, and design without the need to navigate through complex menus. Change the speed, color, and dimmer using the circular palette. The lighting levels, color, and effects can be programmed from a PC, Mac, Android, iPad, or iPhone using the included software.

Specifications:

Input Power: 6-7V DC 0.6A
Output Protocol: DMX512 (x2)
Programmability: PC, Mac, Tablet, Smartphone
Available Colors: Black / White
Connections: USB, Ethernet, RS232, Clock, 8 dry contact ports, 5v Output Relay
Memory: microSD (32GB Max)
Temperature: -10°C - 45°C
Mounting: Single or double gang wall socket
Dimentions: 146x106x11mm
Standards: EC, EMC, RoHS, ETL
Sleek glass design which sits 11mm from the wall
Graphical color display to show the selected environment
Color/dimmer/speed palette
Color temperature mixing
Touch-sensitive buttons. No mechanical parts
The touch-sensitive wheel allows for accurate color selection
Multi-zone microSD memory
Multi-room control with 500 scenes, 10 zones
1024 DMX channels. Control 340 RGB fixtures
USB & Ethernet connectivity for programming and control
RS232, Dry Contact Ports, and an Infra-Red input port
Clock and calendar with Sunrise/Sunset triggering
Network communication. Control lighting remotely
Catalog of designs including black and white glass
OEM customization of the color palette and logo
Windows/Mac software to set dynamic colors/effects
iPhone/iPad/Android remote and programming apps
