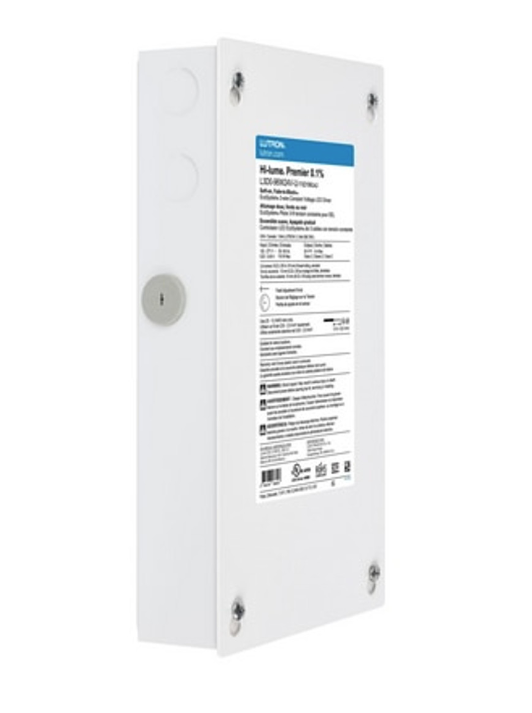

Diode LED DI-DM-24V96W-L3D
DI-DM-24V96W-L3D Product DescriptionThe Hi-lume® Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL® Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.
Features:Continuous, flicker-free dimming from 100% to 0.1%1.
Soft-on, Fade-to-BlackTMoperation for EcoSystem®controls: fades smoothly between 0% and 0.1% when turned on and off for an incandescent like experience.2
PWM dimming meets IEEE1789 over the entire dimming range.
UL® Listed for United States and Canada (cULus®).
NOM certified for Mexico.•Field Adjustment Knob offers customer low-end light output tuning for better fixture-to-fixture matching.
Guaranteed dimming performance when used with Lutron® controls:
- HomeWorks® QS, Energi Savr NodeTM units with EcoSystem®controls, GRAFIK Eye® QS with EcoSystem®controls, PowPak® with EcoSystem®dimming modules, PowPak® with EcoSystem®wireless fixture controls, and Quantum® systems, allowing for integration into a planned or existing EcoSystem® lighting control solution.
- Lutron® 3-wire controls and interfaces.
Protected from miswires of input power, up to 277 V~, to EcoSystem® control inputs...
Rated lifetime of 50,000 hours at 40 °C (104 °F) ambient temperature and maximum loading.\
FCC Part 15 compliant for commercial applications at 120 –277 V~ and residential applications at 120 V~.
In rush limiting allows full loading of circuit breakers without nuisance tripping.
100% end-of-line performance tested at a Lutron®factory.
Restores all settings after power failure.
Barrier provided for Class 2 separation in the wiring compartment.
Redundant connections on line and control terminals for easy daisy chain wiring.
Redundant connections on output terminals allow for easy wiring of two LED load home runs.
Class 2 output designed to withstand hot swap.
For more information please visit: www.lutron.com
About Diode LED:Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
