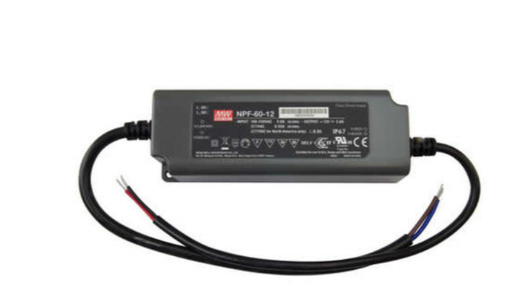

Diode LED DI-CV-MW12V60W-277

DI-CV-MW12V60W-277 Product Description

Commercial Grade 120~277VAC Constant Voltage Drivers are designed for commercial grade projects of any size. Pair these drivers with a variety of low voltage REIGN Dimmers, RGB/DMX Controls, and 120V switches to create long lasting installations that offer high efficiency. These drivers are IP67 rated and are suitable for install in a wide range of commercial applications in dry, damp, or wet locations.

Features:

Wattage: 60 Watt
Type: Commercial Grade Constant Voltage Driver
Input Voltage: 120 ~ 277 VAC
Current: 0.8A / 115 VAC
Frequency: 47 ~ 63Hz
Efficiency: 86%
Input Wire Connection: SJTW 18/2AWG, AC/L(Brown) AC/N(Blue)
Output Voltage: 12 VDC
Output Wire Connection: SVT 18/2AWG, Vo+(Red) Vo-(Black)
# Output Connections: 1
Operating Temperature: -40 ~ + 185°F (Refer to "Derating Curve")
Location: IP67 Outdoor / Wet Location
Working Humidity: 20 ~ 95% RH non-condensing
Class 2 Compliant
Certifications: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67 approved; Design refer to EN60335-1
Dimmable: Yes, with compatible PWM dimmer. Do not install more than 1 PWM dimmer or color controller per adapter
Dimensions: 5.9" x 2.1" x 1.4"
