Diode LED DI-CPCHA-4596W 96" Chromapath LED Tape Light 45° White Channel

2 sold in last 8 hours
Diode LED

DI-CPCHA-4596W

$98.00 $93.10
$93.10
customers are viewing this product

Diode LED DI-CPCHA-4596W

DI-CPCHA-4596W Product Description

CHROMAPATH® Builder Channels protect and provide light diffusion for indoor LED tape light. CHROMAPATH Builder Channels provide a rigid, dust proof housing that can be mounted on virtually any flat surface. These channels can be custom cut, as well as mounted end to end to any total length. These sturdy but lightweight matte finish anodized aluminum channels are sold in 48 inch, 96 inch and custom-length sections. These channels can help create sleek, completely customized LED tape lighting installations.

The unique track design of the channel means it’s easy to install, and you can make small adjustments to the channel position after installation. Just screw the clips into the surface first, then snap the channel into the clips.

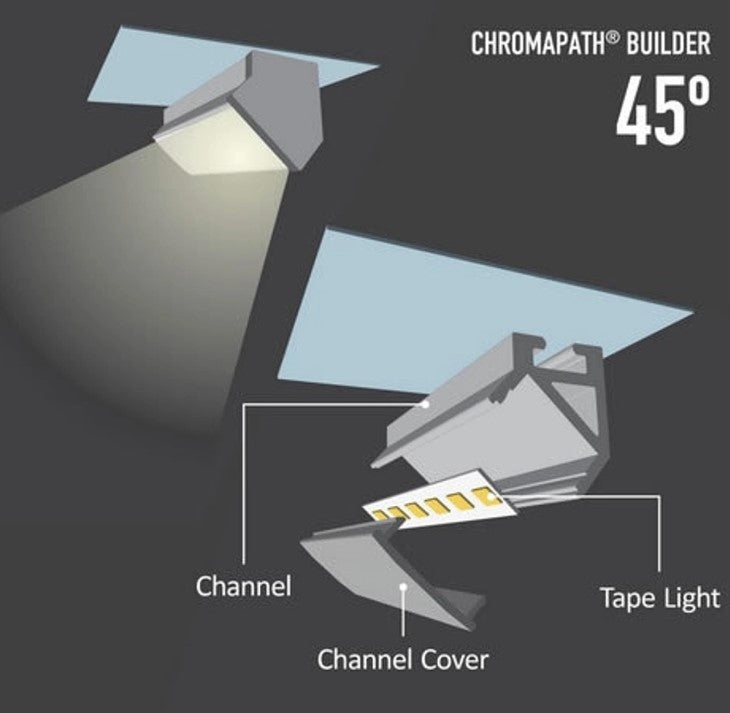

Each channel accommodates a CHROMAPATH Channel Cover (sold separately). Choose a frosted Channel Cover to diffuse and soften the illumination from the LED strip light, or a clear Channel Cover to shield the LED strip light from dust without diffusing the light. This cover is easy to install: just slide it into the existing slot in the CHROMAPATH channel.

Specifications:

Material: Aluminum
Aluminum Finish: Clear anodized aluminum
White Finish: White gloss powdercoat
Black Finish: Black satin powdercoat
Mounting Clip Material: Steel
End Cap Material: PVC (Sold Separately)
Cover Material: Polycarbonate (Sold Separately)
Field Cuttable: Yes
Wet Location1: No. See footnote below.
Mounting: See Additional Accessories
Dimensions: See Mechanical Diagrams
Dimensions with Mounting Clips (Square, 45° and Duo): +1/8 in.
Warranty: 5 years

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
