Diode LED DI-24V-TE-LIN-WD3018-016
DI-24V-TE-LIN-WD3018-016 Product Description

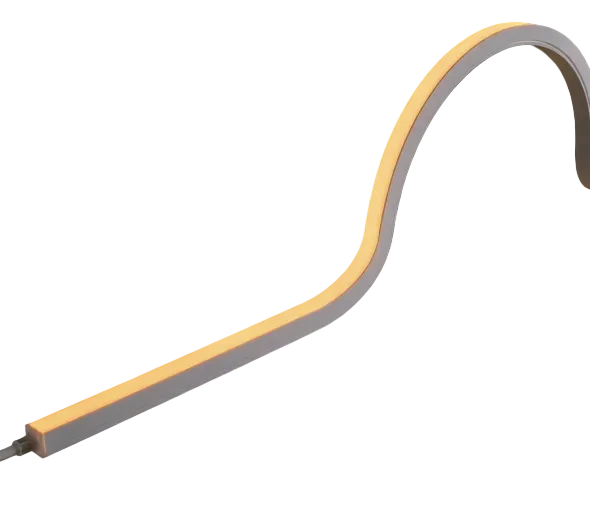

The Diode LED is a LINAIRE® Flex Top Bend Warm Dim Linear Light designed for architectural applications requiring smoothly dimmed, fully diffused illumination. As the light output is reduced, its color temperature transitions from 3000K to 1800K to replicate the familiar warm glow of incandescent lighting. The light engine produces up to 200 lumens per foot with a high 90+ CRI for accurate color rendering. Its flexible top-bending profile and dot-free illuminated surface make it suitable for coves, curved architectural details, hospitality spaces, restaurants, residential interiors, retail environments, and other applications where a warmer atmosphere is desired during dimming.
Specifications:
Brand: DIODE LED
SKU / MPN: DI-24V-TE-LIN-WD3018-016
Product Type: LINAIRE® Flex Top Bend Warm Dim Linear LED Light Engine
Electrical: 24V DC Constant Voltage; 4.3W/ft; Dimmable; Simple 2-Wire Installation; Maximum Run Length: 16.4 ft.; 96 in. White Bare Lead 18/2 AWG Wire at Both Ends
Optical: Warm Dim 3000K-1800K; 200 Lumens/ft; 90+ CRI; Fully Diffused Dot-Free Illumination
Mounting: Compatible with LINAIRE® Flex Top Bend Mounting Channel, Mounting Spine Channel, Mounting Clips, Straight Field Connector, Side Field Connector, Bottom Field Connector, and Dead End Cap
Mechanical: Flexible Top-Bending Architectural Profile; 2.81 in. Cut Points; 5 in. Minimum Bend Radius; 36 LEDs/ft; UV Stabilized; Water Resistant; UL Listed 2108; UL Listed Field Cuttable; IP65 Field Connections and Terminations; IP67 Stock Spools and Factory-Assembled Fixtures
Dimensions: 16.4 ft. Length × 0.63 in. Width × 0.63 in. Height
Operating Temperature: Ambient Temperature: -4°F to 122°F (-20°C to 50°C); Operating Temperature: -4°F to 176°F (-20°C to 80°C)
Lifecycle: 5-Year Limited Warranty
Applications: Architectural Accent Lighting, Cove Lighting, Curved Architectural Details, Hospitality Spaces, Restaurants, Residential Interiors, Retail Environments, Indoor and Outdoor Lighting, and Custom Warm-Dim Linear Lighting Applications
Accessories: DI-LIN-TE-STFC Straight Field Connector; DI-LIN-TE-SDFC Side Field Connector; DI-LIN-TE-BFC Bottom Field Connector; DI-LIN-TE-MTCH-39 Aluminum Mounting Channel; DI-LIN-TE-SPINE-39 White Mounting Spine Channel; DI-LIN-TE-MTCL-2 White Mounting Clips; DI-LIN-TE-DEC Dead End Cap; Compatible OMNIDRIVE® X and Magnetic Dimmable 24V Drivers
Case Quantity: 1 Spool (16.4 ft.)
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
