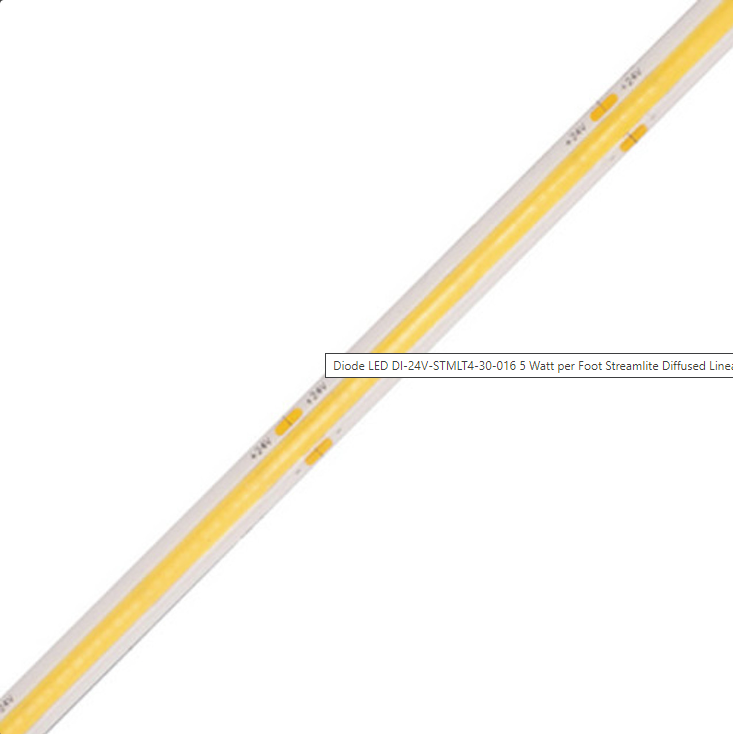

Diode LED DI-24V-STMLT4-30-016

DI-24V-STMLT4-30-016 Product Description

Introducing the lowest profile COB linear lighting, featuring uniform illumination without the need for additional diffused covers or accessories. STREAMLITE delivers premium light quality from a solid stream of light. Perfect for areas with low clearance or reflective surfaces to eliminate spot-glare.

Specifications:

Voltage: 24VDC
Wattage: 5 W/ft
Lumens: 409/ft
Color Temperature: 3000K
Max Run: 16.4 Feet
Cut Points: 1.8 in.
CRI: 90+
Dimmable: Yes
Field Cuttable: Yes
DImensions: Width = 0.31", Height = 0.13"
Environment: Indoor / Damp Location
Certifcation: UL Listed 2108
Warranty: 7 Year
LED Chip Beam Angle: 180°
Luminous Efficacy3 (lm/w): 87~97
Mounting: 3M mounting tape on back of tape.
Connections: 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
Ambient Temp4: -4 - 122°F (-20 ~ 50°C)
Operating Temp5: -4 - 176°F (-20 ~ 80°C)

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
