Diode LED DI-24V-SE-LIN-WD3018-016
DI-24V-SE-LIN-WD3018-016 Product Description

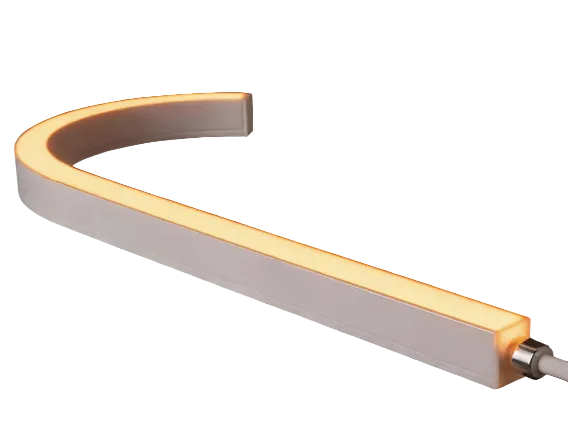

The Diode LED is a premium LINAIRE® Flex Side Bend Warm Dim Linear Light engineered to replicate the familiar glow of incandescent lighting by automatically shifting from 3000K to an ultra-warm 1800K as it dims. Operating on a 24V DC constant-voltage system, it delivers smooth, fully diffused illumination with no visible LED hot spots for high-end architectural and decorative lighting applications.
Specifications:
Brand: DIODE LED
Manufacturer Part Number: DI-24V-SE-LIN-WD3018-016
Series: LINAIRE® Flex Side Bend Warm Dim
Product Type: Flexible Side-Bending Warm Dim Linear LED Light
Input Voltage: 24V DC Constant Voltage
Length: 16.4 ft.
Power Consumption: 4.3 Watts per Foot
Color Temperature: Warm Dim 3000K-1800K
Light Output: 133 Lumens per Foot
CRI: 90+
Dimmable: Yes
Dimming Type: Smooth 2-Wire Warm Dim
Bending Direction: Side Bend (Horizontal)
Cutting Interval: 2.81 in. (72 mm)
Maximum Run Length: 16.4 ft.
Bend Radius: 5 in.
LED Density: 36 LEDs per Foot
Dimensions: 0.45 x 0.79 in. (W x H)
Lead Wires: 96 in. White Bare Lead, 18/2 AWG Wire (Input & Output)
Environment: Outdoor / Wet Location (IP65 Field Termination, IP67 Factory Assembly)
Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
Operating Temperature: -4°F to 176°F (-20°C to 80°C)
Certification: UL Listed 2108, UL Field Cuttable, Closet Rated
Warranty: 5-Year Limited Warranty
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
