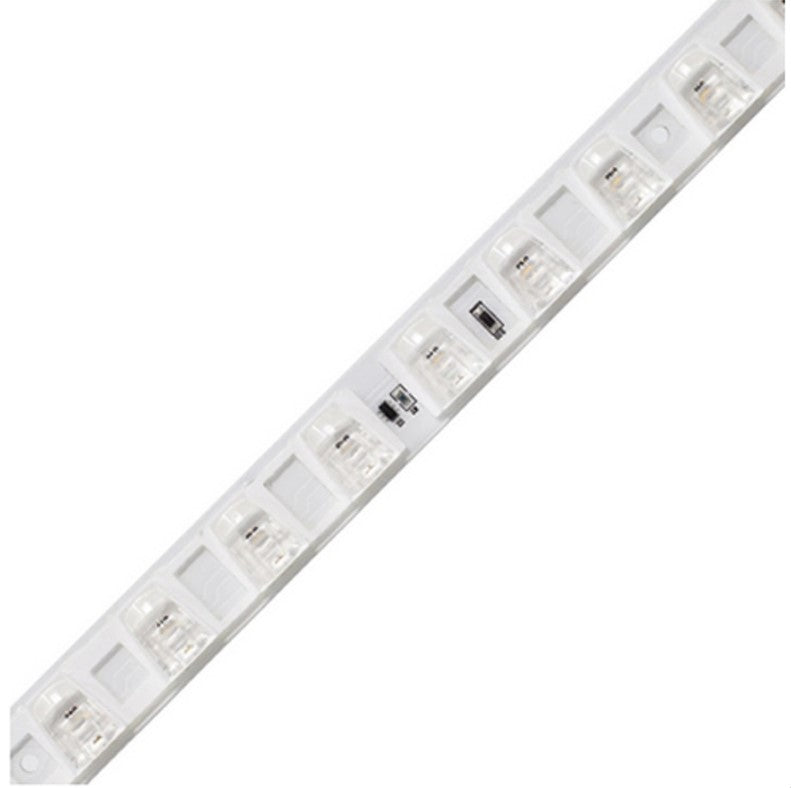

Diode LED DI-24V-NO9-30K-AS-10

DI-24V-NO9-30K-AS-10 Product Description

Optics By Diode LED is a focused linear lighting beam for grazing and architectural accents. Each diode has a silicone optical lens that gives clear projection without halo discoloration, delivering perfect clarity to bring out true-to-life colors. The patented lens design features non-scalloping projection along walls and can be installed for both indoor and outdoor applications.

Specifications:

Voltage: 24VDC
Wattage: 8.18W/ft
Lumens: 731/ft
Max Run: 10/ft
Cut Points: 6 in
Color Temperature: 3000K
CRI: 90+
Dimmable: Yes
Field Cuttable: Yes
Dimensions: Height = 0.38", Width = 0.72"
Beam Angle: Asymmetrical Angle
Environment: Outdoor / Wet Location / IP67
Certification: ETL Listed
Warranty: 5 Year
Luminous Efficacy3: 89.4 Lm/ft.
Material: UV/IR resistant silicone
Mounting (sold separately): Bottom U-Clip
Ambient Temp4: -4 - 122°F (-20 ~ 50°C)
Operating Temp5: -4 - 176°F (-20 ~ 80°C)
Operating Temp5: -4 - 176°F (-20 ~ 80°C)
