Diode LED DI-24V-EQUI-6500-12-1055

DI-24V-EQUI-6500-12-1055 Product Description

Solid state LEDs are more cost-effective and reliable than traditional display graphics lighting. LEDs produce no UV light, eliminating the risk of fading graphics or damaging materials. The lifespan of the LEDs significantly reduce maintenance costs. At 9 watts per foot, LEDs are considerably more energy efficient than fluorescent display lighting. The LEDs remain cool during operation, increasing your options for placement and eliminating the need for ventilation.

SPECIFICATIONS:

SKU : DI-24V-EQUI-6500-12-1055
UPC : 848333003523
Enviroment / IP Rating: Indoor
Input Voltage: 24VDC Constant Voltage
Color Temperature: 6500K
Lumens: 686
CRI: 69
Efficacy (lm/W): 76.2
Power Consumption / ft.: 9.4W
Power Consumption / ft.: 9.4W
Beam Angle: 10° x 55°
LED Chip Spacing: 3.75 in.
LED Chips / ft.: 3

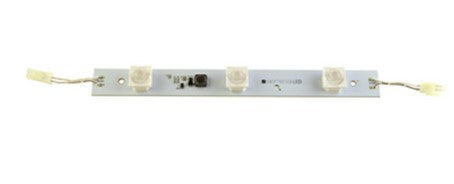

PCB Type: Metal Rigid PCB Mounting: 2 mounting holes (5mm diameter) Mounting hardware included. Bars must be mounted to a metal surface.
Field Cuttable: No
Maximum Run: 9 fixtures (12 in.) 4 fixtures (24 in.)
Connections: Male Molex one end. Female Molex opposing end. Lead wire AWM UL 2464 20AWG, 4 in. length.
Dimmable: No
Ambient Temp: -4 ~ 105°F (-20 ~ 40°C)
Operating Temp: -4 ~ 122°F (-20 ~ 50°C)
Environment: Indoor / dry location
Dimensions: 11.4 x 1.2 x 0.4 in. (L x W x H) 22.9 x 1.2 x 0.4 in. (L x W x H)
