Diode LED DI-24V-DRGBW-50-PIX-6LED-016
DI-24V-DRGBW-50-PIX-6LED-016 Product Description

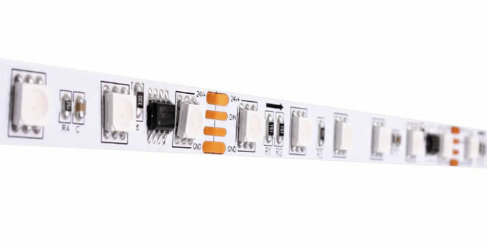

The Diode LED DI-24V-DRGBW-50-PIX-6LED-016 is a professional-grade DAZZLE® Pixel RGBW LED Tape Light designed to create dynamic lighting effects with individually addressable pixel control. Featuring six LEDs per RGBW pixel and a crisp 5000K dedicated white channel, it delivers vivid color transitions, smooth chasing effects, and brilliant white illumination for architectural, entertainment, and commercial lighting applications.
Specifications:
Brand: DIODE LED
Manufacturer Part Number: DI-24V-DRGBW-50-PIX-6LED-016
Series: DAZZLE® Pixel RGBW
Product Type: 6-LED Pixel RGBW LED Tape Light
Input Voltage: 24V DC Constant Voltage
Length: 16.4 ft. (5 m)
Power Consumption: 5.8 Watts per Foot
Light Color: RGBW with 5000K White
Pixel Configuration: 6 LEDs per RGBW Pixel
Control IC: UCS2904B
Lumen Output: 220 lm/ft (All On), 110 lm/ft (5000K White), Red: 40 lm/ft, Green: 86 lm/ft, Blue: 19 lm/ft
Dimmable: Yes
LED Density: 18 LEDs per Foot
Cutting Interval: 3.93 in. (100 mm)
Maximum Run Length: 16.4 ft.
Dimensions: 0.39 x 0.10 in. (W x H)
Lead Wires: 36 in. White Bare Lead, 20/3 AWG UL 2464 Wire with Strain Relief (Input & Output)
Environment: Indoor / Damp Location (IP20)
Rated Life: 50,000+ Hours (TM-21 / LM-80)
Certification: UL Listed 2108, Closet Rated
Compatible Accessories: Diode LED Aluminum Channels, Diffusion Lenses, Constant Voltage Drivers, Pixel Controllers, Connectors, and Mounting Accessories
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
