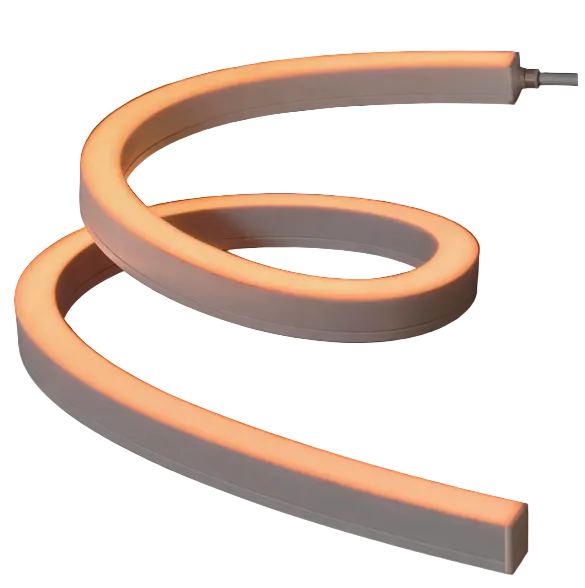

Diode LED DI-24V-3D-LIN-WD3018-016
DI-24V-3D-LIN-WD3018-016 Product Description
The Diode LED is a premium LINAIRE® Flex 3D Bend Warm Dim linear lighting system engineered to replicate the warm, inviting glow of traditional incandescent lighting. As the fixture dims, the color temperature smoothly transitions from 3000K to an ultra-warm 1800K, creating comfortable, ambient illumination for high-end architectural and hospitality environments.
Specifications:
Brand: DIODE LED
Manufacturer Part Number: DI-24V-3D-LIN-WD3018-016
Series: LINAIRE® Flex 3D Bend Warm Dim
Product Type: 3D Bend Warm Dim Flexible Linear Light
Input Voltage: 24V DC Constant Voltage
Power Consumption: 4.26W per Foot
Length: 16.4 ft. (5 m) Spool
Color Temperature: Warm Dim 3000K–1800K
Light Output: 202 Lumens per Foot
CRI: 90+
Light Distribution: Fully Diffused, Dot-Free Illumination
Cutting Interval: 2.81 in. (72 mm)
Maximum Run Length: 16.4 ft.
Dimming: Yes, Smooth 2-Wire Warm Dim
Dimensions: 0.79 x 0.79 in. (21 x 21 mm)
Bend Radius: 5 in.
LED Density: 36 LEDs per Foot
Lead Wires: 96 in. White Bare Lead 18/2 AWG Wire (Both Ends)
Environment: Outdoor / Wet Location (IP65 Field Connections, IP67 Factory Assembly)
Construction: 3D Bend Design for Horizontal and Vertical Curves
Certification: UL Listed 2108
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
