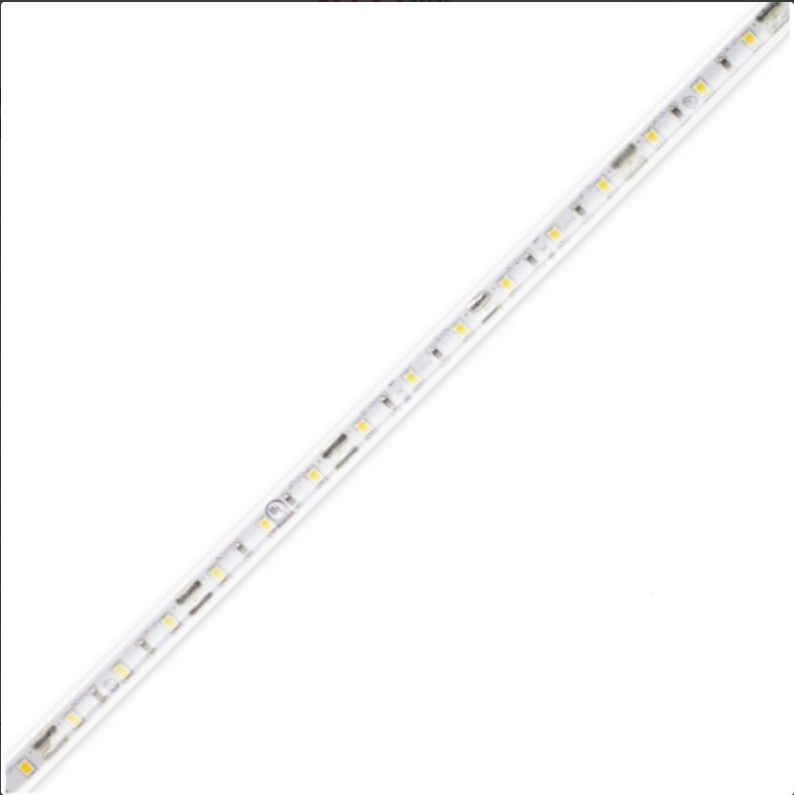

Diode LED DI-12V-BLX1-30-W016

DI-12V-BLX1-30-W016 Product Description

At the center of this wet location linear lighting is the precision engineered BLAZE X LED light engine. BLAZE X wet location has 95+ CRI and high R-values that provides precision color rendering, and is suitable for applications that are prone to splashing, spraying, or rain. Field-cuttable and available in the Diode LED Tailored Lighting Program.

Specifications:

Voltage: 12VDC
Wattage: 1.54W/ft
Lumens: 110/ft
Cut Points: 2 in
Max Run: 37 ft
Max Run (Class 2): 37 ft
LED Chips: 18/ft
Color Temperature: 3000K
CRI: 95+
Dimmable: Yes
Dimensions: Width = 0.39", Height = 0.18"
Environment: Indoor/ Damp Location
Certification: UL Listed 2108
Warranty: 12 Year
LED Chip Type: Epistar 2835 Guang Mau
LED Chip Beam Angle: 120°
Luminous Efficacy 3 (lm/w): 69~78
Mounting 4 : Mounting Clips and 3M™ 55236 Adhesive
Connections 5 : 2.5 inch hard-wire lead: 20/2 AWG
Ambient Temp 6 : -4 ~ 122°F (-20 ~ 50°C)
Operating Temp 7 : -4 ~ 176°F (-20 ~ 80°C)

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
