Diode LED DI-12V-BLX1-24-100
DI-12V-BLX1-24-100 Product Description

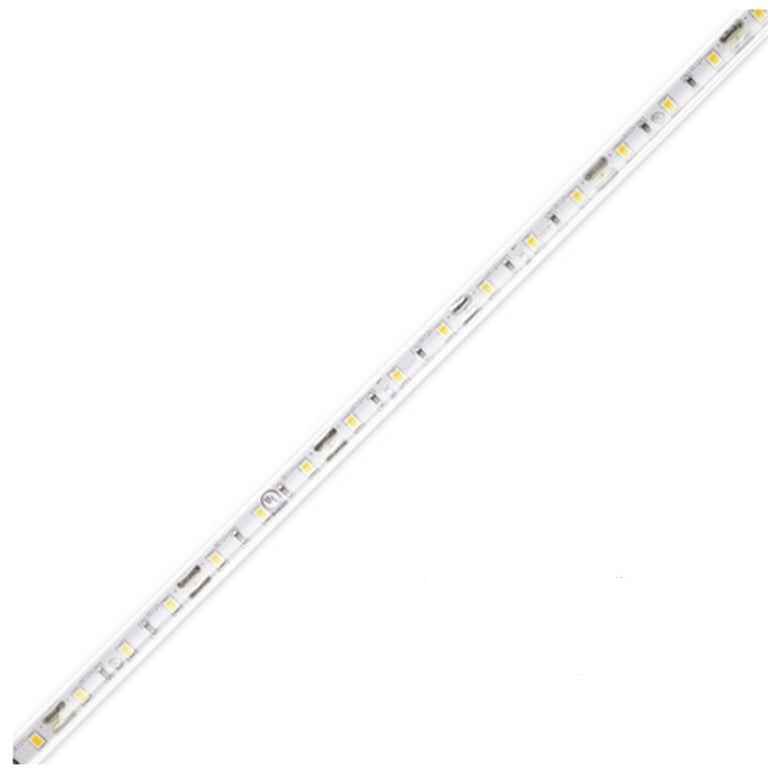

The precision engineered BLAZE X is the core of the X-RANGE™ LED Lighting family. This enhanced LED tape light, leading the industry in lighting performance and quality. BLAZE X has 95+ CRI and higher R-Values that provides precision color rendering, superior long-lasting performance, and all with the Diode LED 12-year warranty.Specifications:
Voltage: 12VDCWattage: 1.54W/ft
Lumens: 110/ft
Cut Points: 2 in
Max Run: 37 ft
LED Chips: 18/ft
Color Temperature: 2400K
CRI: 95+
Dimmable: Yes
Dimensions: WIdth = 0.32", Height = 0.1"
Environment: Indoor/ Damp Location
Certification: UL Listed 2108
Warrenty: 12 Year
LED Chip Type: Guangmu 2835 SMD Chip
LED Chip Beam Angle: 120°
Luminous Efficacy 3 (lm/w): 71~88
Mounting 4 : 3M™ 55280 Adhesive
Connections 5 : 3 ft. Female DC plug on end. 3 ft. hard-wire lead opposing end. Leads: UL 2464 20/2 AWG
Ambient Temp 6 : -4 ~ 122°F (-20 ~ 50°C)
Operating Temp 7 : -4 ~ 176°F (-20 ~ 80°C)
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.Additional information about the product goes here. You can customize this content as needed.
