Diode LED DI-0821

DI-0821 Product Description

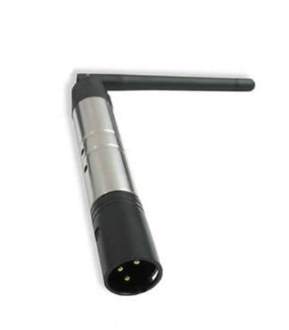

The DMX Wireless Receiver/Transmitter will wirelessly send DMX signals between controllers and fixtures via XLR-3 connections. The transmitter/receivers are sold individually (in male and female genders) to communicate between DMX Controllers and one or more DMX-enabled fixtures. Both genders act as a transmitter or receiver and may be used in multiple master/slave sets for large or complex applications. The Wireless DMX LED Transmitter and Receiver use male and female XLR-3 DMX and has a transmission range of up to 1,000 feet (unobstructed). Each transmitter includes one plug-in adapter to power it and operates on a frequency of 2.4G ISM with a capacity of 126 channels. Up to seven pairs of Wireless DMX Transmitters can be used in the same space without interfering with each other.

Features:

Dimensions: Transmitter / Receiver: Length = 5.08", Diameter = 0.75"; Antenna: Length =3.70", Diameter = 0.36"
Environment / IP Rating: Indoor
Input Voltage: 5V DC
Connection Type: XLR-3 Male or Female
Working Frequency: 2.400 ~ 2.4835Ghz, ISM, 126 RF CH
Modulation: GFSK
Maximum Transmit Power: 20dBm
Receiver Sensitivity: -94dBm
Transmitting Distance: 1000' effective open area
Wireless ID's: 7 color-coded ID's: Red, green, yellow, blue, pink, cyan, white.
Power Failure Memory: Yes
Power Input Connection: 3.5mm DC female jack
Ambient Temp: -4° ~104°F (-20° ~50°C)
Operating Temp: -4° ~122°F (-20° ~50°C)
Adapter Input Voltage: 100-240VAC, 0.2A max
Adapter Input Frequency: 50-60Hz
Adapter Output Voltage: 5V DC
Adapter Dimensions: Length = 0.95", Width = 1.34", Height = 2.17"
Adapter DC Plug Size: Inside Diameter: 1.35mm, Outside Diameter: 3.5mm
Adapter Lead Length: 60"
