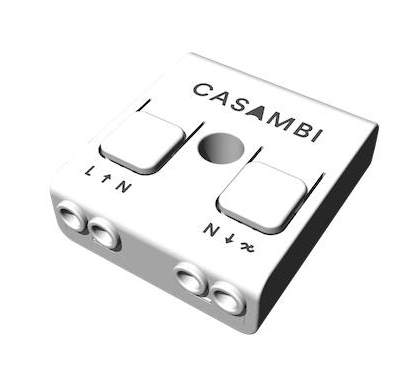

Diode LED CBU-TED

CBU-TED Product Description

CBU-TED is a Bluetooth-controllable, Casambi-enabled trailing edge dimmer for the operation of incandescent lamps, dimmable LED lamps, and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire, or into a ceiling outlet box. Maximum allowable ambient temperature must be observed. CBU-TED is able to control up to 150 VA at 230 VAC. It features overcurrent and over-temperature protection. CBU-TED can be controlled with the Casambi app, available for iOS and Android devices, as well as with traditional wall switches. The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store. Different Casambi-enabled products can be used as a simple one-luminaire direct control to a complete and full-featured light control system where up to 127 units form automatically an intelligent mesh network.

Features:

Dimming method
Trailing-edge phase control

Input
85-240 VAC 50-60 HZ
and
120 VAC 60 Hz

Output
Incandescent and high voltage halogen bulbs:
100 W @ 230 VAC
50 W @ 120 VAC

High voltage AC LED modules:
100 W @ 230 VAC
50 W @ 120 VAC

Dimmable LED and CFL bulbs:
100 W @ 230 VAC
50 W @ 120 VAC

Dimmable electronic transformers:
100 W @ 230 VAC
50 W @ 120 VAC

Max. output current:
0,43 A

Min. load requirement:
1W

Max. inrush current:
10 A, 100 ms

Dimensions:
40,4 x 36,3 x 14,0 mm
