Diode LED CBU-A2D Bluetooth Controllable 2 Channel 0-10V/DALI Controller
CBU-A2D

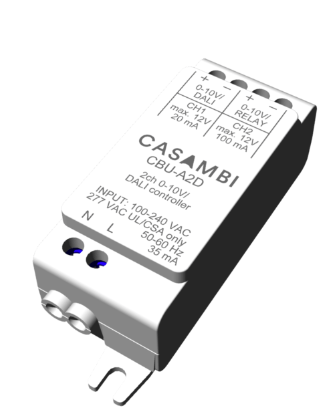

Diode LED CBU-A2D
CBU-A2D Product Description
CBU-A2D is a Bluetooth controllable, Casambi enabled 2 channel 0-10V/DALI controller. CBU-A2D has a universal 100-277 VAC input voltage range, CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for presence and/or daylight harvesting functions. CBU-A2D can be controlled with the Casambi app which can be downloaded free of charge from the Apple App Store and Google Play Store.Different Casambi-enabled products can be used from a simple one-luminaire direct control to a complete and full-featured light control system where up to 250 units form automatically an intelligent mesh network.
Features:
Casambi enabled 2 channel 0-10V/DALI controller
Universal 100- 277 VAC input voltage range
Control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces
The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for presence and/or daylight harvesting functions.
Voltage Range:
100-240 VAC (CE/UL/CSA)
277 VAC (UL/CSA only)
Frequency:
50-60 Hz
Max. mains current:
35 mA
No-load standby power:
< 0,5 W
Channel 1 output:
The output voltage, 0-10V 0-10 VDC, max. 7 mA (sinking)
The output voltage, DALI 12 VDC, max. 20 mA (sourcing)
Maximum number of drivers: 1 driver + 1 sensor/push button
Channel 2 output:
The output voltage, 0-10V: 0-10 VDC, max. 7 mA (sinking)
The output voltage, relay control: 12 VDC, max. 100 mA (sourcing)
Maximum number of drivers: 1
Dimensions:
76,0 x 26,0 x 23,0 mm
3.0 x 1.0 x 0.9 inch
