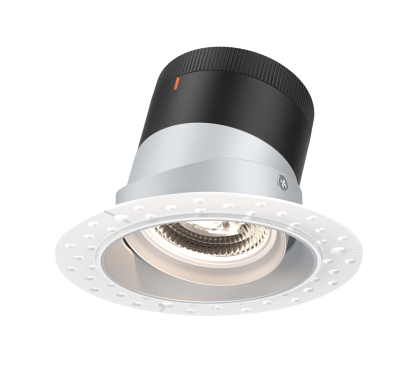

Dals Lighting RC04-CC-35-GMBAZ-TL
RC04-CC-35-GMBAZ-TL Product Description
4 in modular recessed led downlight with adjustable lighting solution featuring customizable finishes, trims, lenses, and reflectors. Designed for residential and commercial applications with wide installation compatibility.
Specifications:
SKU: RC04-CC-35-GMBAZ-TL
Brand: Dals Lighting
Size: 4 in
Watts: 16w / 20w / 24w
Delivered lumens: Up to 2200 lm
Cri: 90
Voltage: 120 / 277 / 347 v
Beam angle: 35° narrow beam
Cct: 2700k / 3000k / 3500k / 4000k / 5000k
Led module: Cob
Color tolerance: 3 sdcm
Ugr: <22
Lifespan: 50000 hours
Environment: Wet location rated
Location: Indoor / outdoor
Operating temperature: -24°c to 44°c
Ip rating: Ip65
Input voltage: 120–347 v
Output voltage: 34–37 v
Output current: 575 ma
Power factor: >0.9
Driver type: Constant current, universal driver
Dimming: Triac / elv / 0–10v
Thd: <19.6%
Cut hole size: 4-1/4 in
Housing material: Aluminum
Finish type: Painted
Lens material: Acrylic
Optic type: Optical lens
Certifications: Etl, fcc, ices, es, jab/t24, ic, astm e283-04
Beam configuration: 35° narrow beam
Reflector type: Gimbal
Reflector finish: Alzak
Trim style: Round trimless
