DALS Lighting PNL6-CC-V-WH
PNL6-CC-V-WH Product Description

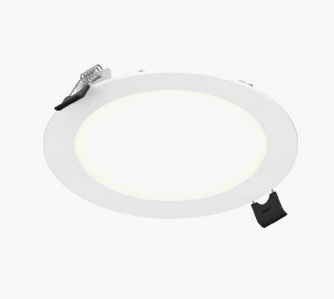

The PNL6-CC-V-WH is a sleek 6-inch ultra-thin recessed LED panel from the REACH series, designed for modern architectural lighting applications requiring clean aesthetics and high performance. Finished in matte white (WH), it blends seamlessly into light-colored ceilings for a minimal, low-visibility appearance.
This fixture delivers 990 lumens of output at 12W, providing efficient and uniform general lighting with low energy consumption. It features selectable color temperature (CCT 2700K–5000K), allowing on-site adjustment from warm to cool white to suit a wide range of residential, commercial, and hospitality environments.
Specifications:
SKU: PNL6-CC-V-WH
Brand: Dals Lighting
Cut hole size (in): 6-3/8"
Watts (W): 12
Delivered lumens: 990
Voltage (V): 120/277/347
FT rating: FT6
CRI: 92
TM-30 Rf: 89
TM-30 Rg: 99
Binning: 3 SDCM
Beam angle (deg): 110
UGR: 27
LED model: SMD2835
Dimming: 0-10V
Color temperature: 2700K/3000K/3500K/4000K/5000K
Location: Wet
Environment: Indoor/Outdoor
Operating temp (°C): -10 to 40
IP rating: IP65
Input voltage (V): 120-347
Input current (mA): 150
Output voltage (V): 30-40
Output current (mA): 270
Power factor (%): 99
Driver type: Constant current
THD: 0.20
Lifetime @ L70: >50,000 hrs
About DALS Lighting:
DALS Lighting is a manufacturer of designer lighting products focusing on smart, innovative and emerging technologies. Our lighting systems are displayed and stocked at several lighting showrooms and retailers, electrical distributors and e-commerce platforms. Our products are also sold on projects across North America through an extensive network of agents who work with architects, engineers, contractors and distributors. We strive for excellent service, superior to market lead times, environmental innovation and product quality.
