A Branch Feeder Type Arc Fault Circuit Interrupter is a device intended to mitigate parallel arcing faults in the complete circuit, including connected cords. Parallel arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults.Moreover It's a type BR 10,000 Amperes Interrupting Capacity 120 VAC and 120/240 Vac
FEATURE :

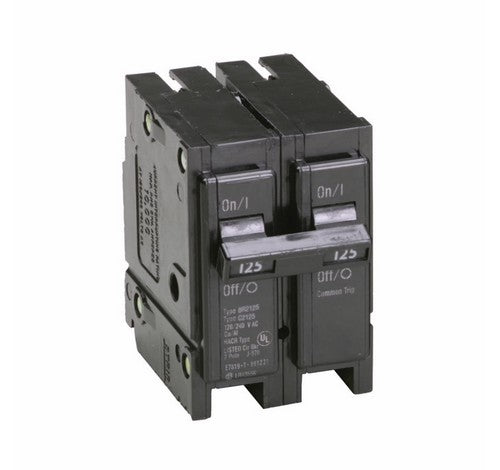

Product Name : Type BR 1-inch Plug-on Circuit Breaker
Catalog Number : BR2125
Compliances : Federal Specifications Classification W-C375
Certifications : UL489
SPECIFICATIONS :
Type: Type BR 1-Inch Plug-On Circuit Breaker
Amperage Rating: 125A
Interrupt Rating: 10 kAIC
Number Of Poles: Two-pole
Voltage Rating: 120/240V
Mounting: Plug-on
Main Circuit Breaker: BR
Trip Type: Common
Wire Size: #4-2/0 AWG Cu/Al
Quantity: Q28
Used With: Type BR Loadcenters
UPC:786676367059
Certifications: UL489
Product compliance: Federal Specifications Classification W-C375
