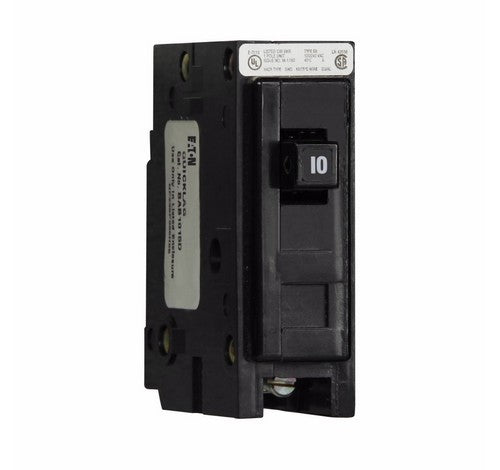

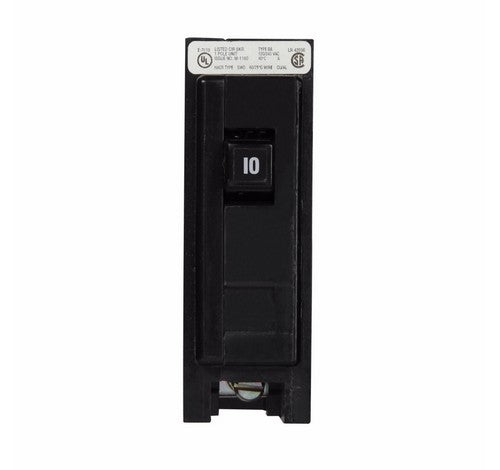

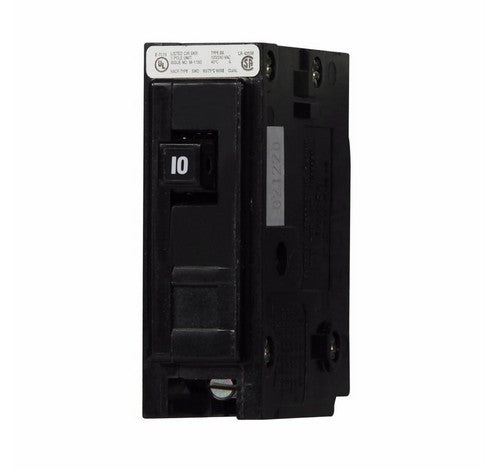

Cutler Hammer BAB1010 10Amp Bolt-On Miniature Circuit Breakers 120 / 240V

Eaton’s Cutler Hammer BAB1010 Series bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120/240 VAC fluorescent light applications. Easy to securely install. Choose from one-, two-, or three-pole designs. Built and listed to UL 489. All products 15–100A are HACR rated. Choose from Bolt-On Types BAB, QBHW, HBAX, HBAW.

FEATURE :

Product Name : Quicklag Industrial Thermal Magnetic Circuit Breaker
Catalog Number : BAB1010
Dimensions:
Height: 4.7 IN
Length: 3.6 IN
Width: 1.2 IN
Weight: 0.3 LB
Notes:HACR rated

SPECIFICATIONS :

Type: Quicklag
Amperage Rating: 10A
Interrupt Rating: 10 kAIC
Number Of Poles: Single-pole
Voltage Rating: 120/240V
Mounting: Bolt-on
Trip Type: Non-Interchangeable
Quantity: Q7
Circuit Breaker Type: BAB
Warranties: 1 year
UPC: 786679301104
Certifications:
UL Listed
CSA Certified
Product compliance: No Data
