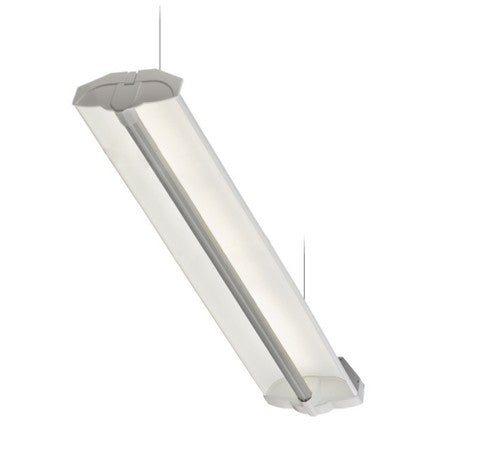

CREE LED Lighting CS14-38L-40K-10V 48" 38W 1 x 4' LED Linear Luminaire Dimmable 4000K

2 sold in last 8 hours


customers are viewing this product
This 38 watt, 4000K, 48" LED linear luminaire light is a revolutionary way to generate white light. The light delivers a higher color rendering index (CRI) of 90, better energy savings, and a longer 50,000 hour life backed by a 10 year warranty, with a broader color rendering that traditional fluorescent lamps.


Utilizes Cree TrueWhite® Technology
Active Color Management
Room-Side Heat Sink
Made in the U.S.A. of U.S. and imported parts
Delivered Light Output: 3800 lumens
Input Power: 38 watts
CRI: 90 CCT: 4000K
Input Voltage: 120-277 VAC
Warranty: 10 years
High Efficacy Lifetime: Designed to last 75,000 hours minimum
Base Lifetime: Designed to last 50,000 hours minimum
Dimming: 0-10V Dimming to 5%

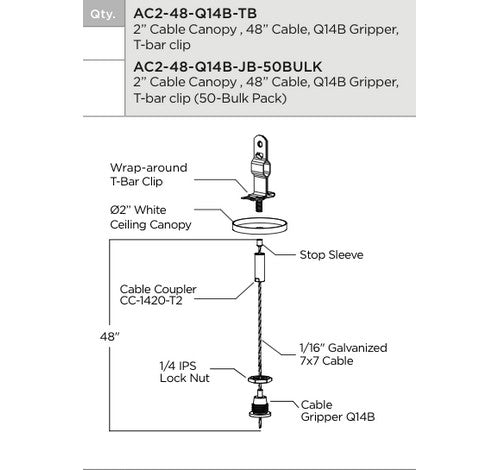

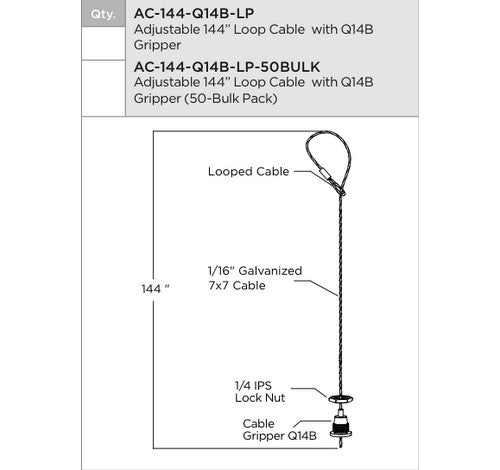

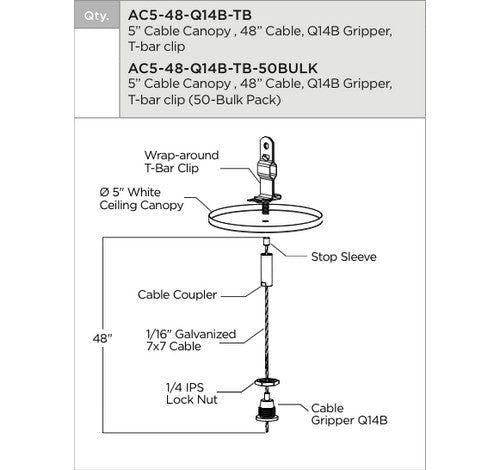

Mounting: Suspended or Surface with Tong Hangers (Standard)

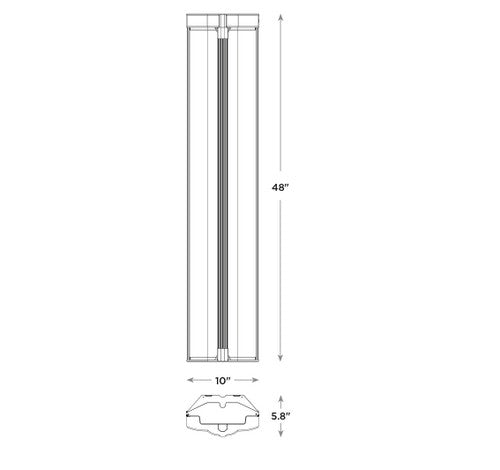

Dimensions: L 48" x W 10" x H 5.8"
Weight: max 8 lbs.


A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology mixes the light from the highest performing red and unsaturated yellow LEDs. This patented approach delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy—a true no compromise solution.

An innovative thermal management system designed to maximize cooling effectiveness by allowing free air movement around the heatsink and through the fixture. This breakthrough design and operating drive current of less than 350mA enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency.

High strength, lightweight polymer forms the reflector and driver housing.
Multi-functional heat sink and light bar doubles as the wireway for through wiring harness.

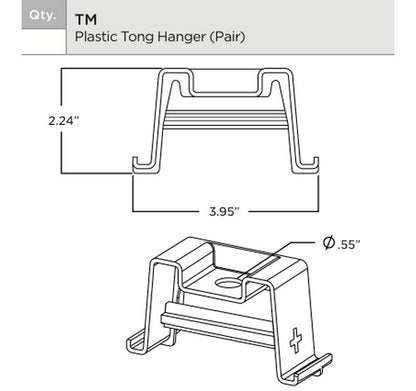

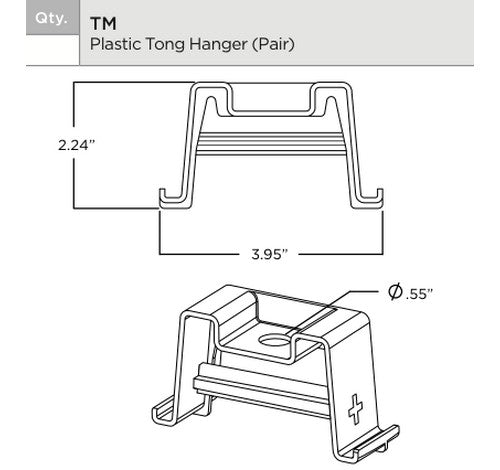

Two plastic tong hangers provided for surface or suspended installations. One tong hanger per unit plus one per row is required.
Hangers are adjustable along fixture to accommodate existing mounting points for upgrade projects. Hanger support required within 18 inches of end of fixture.
Individual fixtures may be connected end to end for continuous row mounting. Easy removal of individual fixtures mounted in continuous row.
Not intended for use in environments containing airborne corrosive agents such as chemical solvents, cleaners, or cutting fluids.

High-efficiency reflector with MicroMixing Optics which integrates the intense direct LED light and distributes optimally mixed indirect white light resulting in a comfortable appearance while maintaining high- efficiency optics.
Indirect LED strip eliminates direct view of highly efficient, lighting quality LEDs.

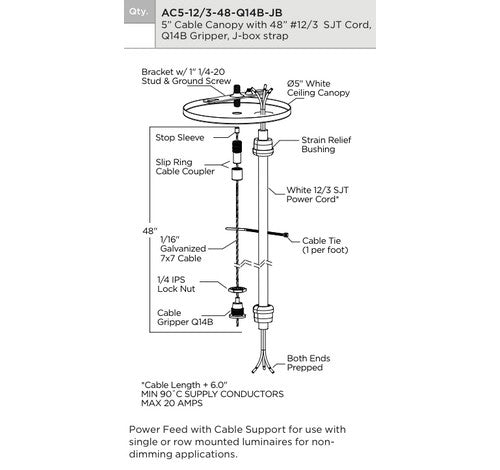

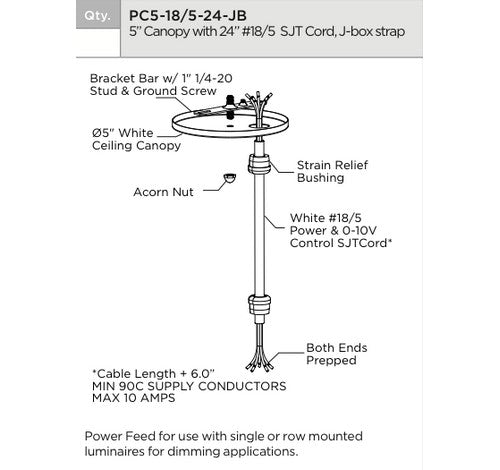

Integral through wiring harness (3#12 AWG power and 2#18 0-10V) with quick-connect plug connectors for easy and efficient continuous row installations while minimizing branch circuit wiring.
Room-side wiring access chamber with hinged door for easy electrical access.
Integral, high-efficiency driver and power supply.
Power Factor = 0.9 nominal
Input Power: Stays constant over life.
Input Voltage: 120V-277V, 50/60Hz

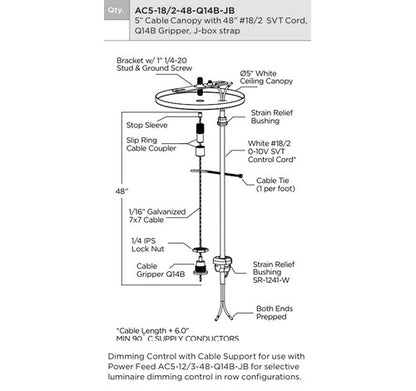

Dimming: Dimmable to 5% with 0 to 10V DC control protocol. Class 1 or Class 2 wiring. Use only lighting controls with relay or FET-based outputs, or lighting controls with neutral connection.
Temperature Rating: Designed to operate in temperatures 0 C to 35 C
Total Harmonic Distortion: < 20% Operating Humidity: < 80% non-condensing

cULus listed
DLC qualified
Suitable for damp locations

Best Seller Product: No
UPC: 813959017865
Call For Price: No
Mounting Height: 8 - 10 Feet
Type of Area: Hangers & Storage, Industrial & Warehouse, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, UL Listed
Color Temp: 4000K
Dimmable: Yes
Lamp Life: 50,000 hours
CRI: 90+
Dimensions: L 48" x W 10" x H 5.8"
Length: 48"
Width: 10"
Height: 5.8"
Lumen Output: 3,800
Manufacturer: CREE
Product Warranty: 10 Year
Part Number: CS14-38L-40K-10V
Minimum Start Temperature: 0 Deg F
Technology: LED
Voltage: Multivolt 120V-277V
Wattage: 38 Watt
Weight Each: 8.00 lbs.
Ballast Start Type: Instant Start
Beam Angle: Normal
