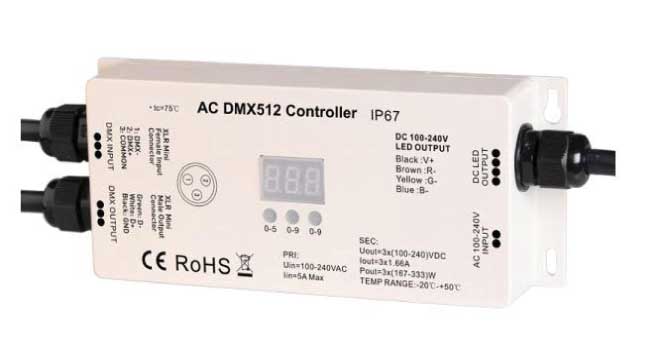

Core Lighting RGB-DMX-4C-WP

RGB-DMX-4C-WP Product Description

The RGB-DMX-4C-WP is a constant voltage DMX512 decoder with 3-channel or 4-channel selectable, 5A per channel output. It is a highly reliable cost-effective decoder. There are two categories of constant voltage output and constant current output. It is addressable with a 3-channel output, designed with DMX512 compliant control interface

Specifications:

Manufacturer: Core Lighting
SKU: RGB-DMX-4C-RJ45
INPUT VOLTAGE 12 ~ 36V DC
INPUT SIGNAL DMX512
OUTPUT VOLTAGE 12 ~ 36V DC
OUTPUT PWM CHANNELS 3 Channels
OUTPUT AMPS 5A per channel
OUTPUT WATTAGE 3 x (167-333W)
OPERATING TEMPERATURE -20ºC ~ 50ºC
DIMENSIONS LxWxH (7”x3”x1.5”)

About Core Lighting:

Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.
