Core Lighting RGB-CT550

RGB-CT550 Product Description

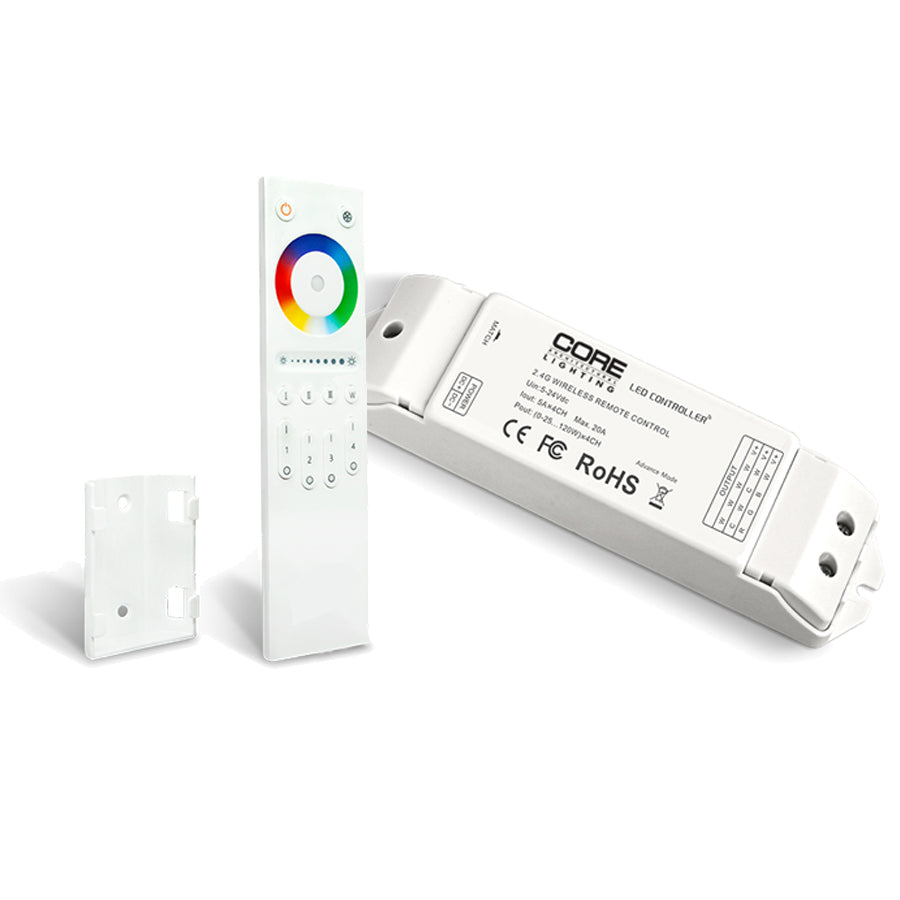

The RGB CT-550 Wireless Receiver & Control System controls up to 4 independent zones of RGBW (Red, Green, Blue, and White) light. With the addition of white light, brighter colors can be achieved as well as the introduction of the pastel range, which will satisfy color requirements for the most discerning lighting designers.

Specifications:

Manufacturer: Core Lighting
SKU: RGB-CT550
INPUT VOLTAGE DC5V ~ DC24V
POWER CAPACITY 100W (5V) | 240W (12V) | 480W (24V)
NO. CHANNELS 4-Zone Control
OUTPUT CURRENT (MAX) 5A per Channel (20A Total)
REMOTE DISTANCE 50M (Line of Sight)
OPERATING TEMPERATURE -22°F (-30°C) ~ 131°F (55°C)
CERTIFICATIONS RoHS, CE
PROTECTION Reverse connection protection, Over Current, Over-Heat, Short Circuit
WORKING FREQUENCY 2.4 GHz
REMOTE DIMENSIONS 6.38 x 1.65 x 0.59” (LxWxH)
REMOTE WEIGHT 0.44lbs

About Core Lighting:

Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.
