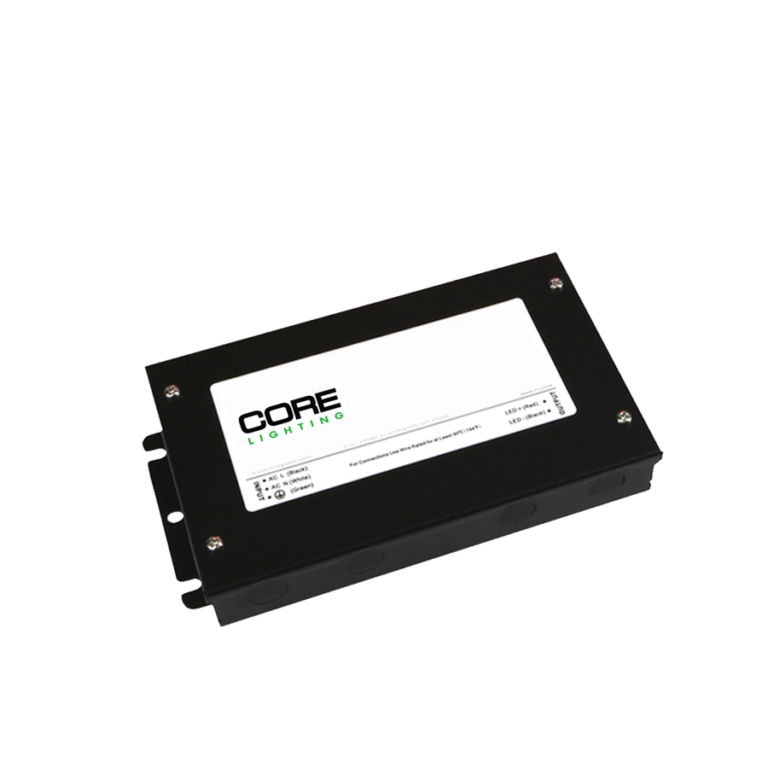

Core Lighting PSVT-288W-24V-UNV-010-CL2

PSVT-288W-24V-UNV-010-CL2 Product Description

PSVT SERIES indoor/outdoor drivers are 0-10V dimming drivers with an integrated UL listed junction box. These efficient, low-voltage power supplies are Class 2 compliant, making them safe and inspection ready. The wet/dry housings are IP66 rated designed to fit most installations.

Features:

Manufacturer:  Core Lighting
SKU: PSVT-288W-24V-UNV-010-CL2
CLASS 2: Yes
High power factor/efficiency
Short circuit and over current protection
100~277V AC for any residential or commercial application
Superior PWM dimming technology
Factory derated
Only 10% minimum load
Full protection aluminum housing
Cooling by free air convection
1.5 Kg Net Wt.
11.85” X 4.25” x 1.81”
Voltage Range: 100~277V AC
Power Factor: 0.99(120V) ; 0.98(230V) ; 0.98(277V)
Efficiency (Avg): 88%(120V) ; 92%(230V) ; 92%(277V)
AC Current (Max): 3.4A (100VAC)
DC Voltage: 24V DC
Rated Power: 3 x 96W
