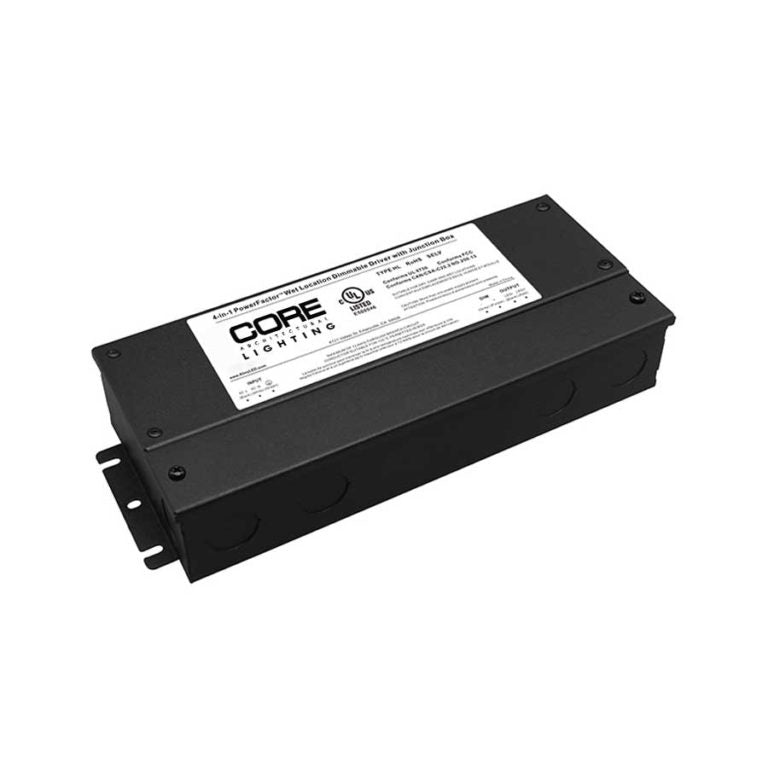

Core Lighting PSRX-288W-24V-UNV-CL2 Class 2, 4-in-1 Dimmable Driver with Junction Box - 288W - 24V - UNV

2 sold in last 8 hours

PSRX-288W-24V-UNV-CL2

$302.84 $293.75
$293.75
customers are viewing this product

Core Lighting PSRX-288W-24V-UNV-CL2

PSRX-288W-24V-UNV-CL2 Product Description

PSRX SERIES indoor/outdoor drivers are highly efficient, stable with smooth dimming capability compatible with most TRIAC, ELV, MLV, 0-10V reverse and forward phase dimmers, and on/off switches. These drivers are factory derated which allows them to be loaded to maximum wattage capacity.

Features:

Manufacturer:  Core Lighting
SKU: PSRX-288W-24V-UNV-CL2
High power factor/efficiency
Short circuit and over current protection
Dry or wet location
Superior PWM dimming technology
Compatible with TRIAC, MLV, and ELV dimmers
Factory derated
Flicker-free 100-0% dimming
Only 10% minimum load
Line Regulation: 5%
CLASS 2: Yes
Input Voltage Range: 100-277V AC
Input Frequency Range: 47 - 63 Hz
Power Factor: > 0.99 (120VAC); ≥0.97 (277VAC)
AC Current (Max): 1.8A (100V AC)
Output Voltage: 24V DC
Output Current (Max): 4A
Output Wattage (Max): 200W

About Core Lighting:

Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.
