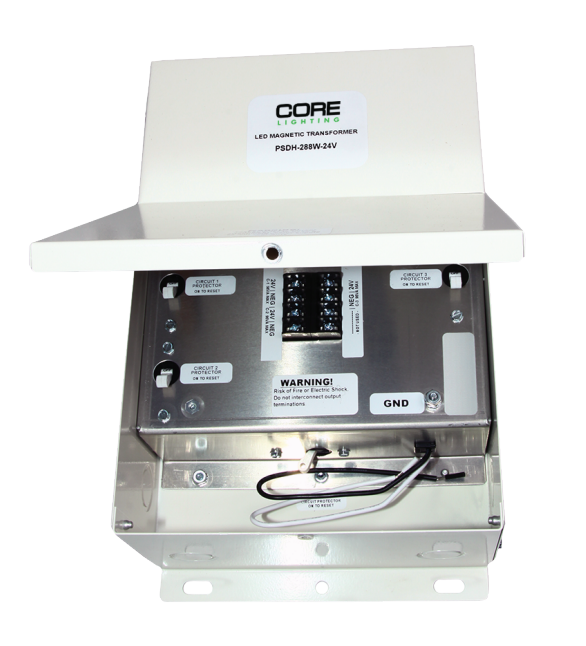

Core Lighting PSDH-288W-24V-277
PSDH-288W-24V-277 Product Description
PSDH-288-24V High Performance DC Dimming Drivers provide a solid reliable source of power in any commercial application. Integrated with AC ripple and Pure DC Technology, ensures LED’s are not overdriven due to repeated excess current and prolong the lifetime of LED lighting system. Compatible with MLV foward phase dimming systems. Available in 24V DC. UL listed, Class 2 Rated.
SPECIFICATIONS:
Manufacturer: Core Lighting
SKU: PSDH-288W-24V-277
INPUT VOLTAGE 120V AC
INPUT FREQUENCY 50/60Hz
INPUT CURRENT @ MAX LOAD 2.5A
OUTPUT VOLTAGE 24V per port
OUTPUT CURRENT @ MAX LOAD 12A
OUTPUT WATTAGE 96W per port x 3
INDIVIDUAL CIRCUIT SPECIFICATIONS
INPUT VOLTAGE 120V AC
OUTPUT VOLTAGE 24V
OUTPUT CURRENT 2A
CURRENT LIMIT 2.5A
Features:
■ Dimming down to 1%
■ Pure DC Current Technology
■ Dimmable with MLV Forward Phase Dimmers
■ NEMA 3R Indoor / Outdoor Enclosure
■ AC Ripple Technology
■ Manual Reset Overload Protection
■ Made in The USA
■ Easy installation
About Core Lighting:
Core Lighting's focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality, and customer-focused service.
