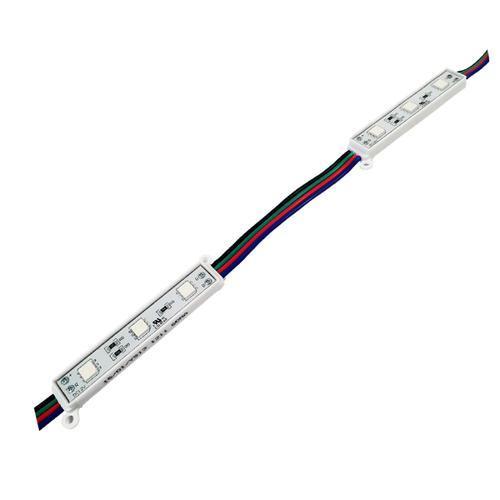

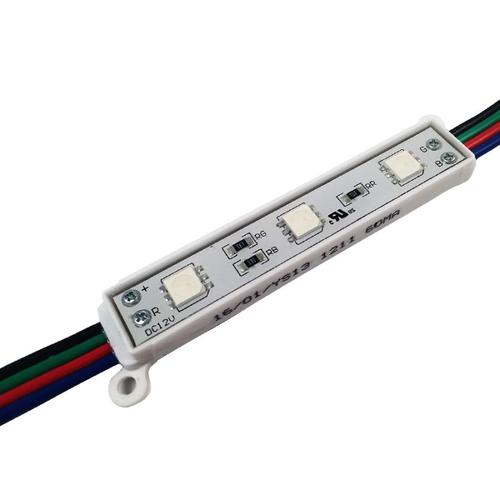

Core Lighting LSD50RGB-6-12

LSD50RGB-6-12 Product Description

The LSD-50RGB Mini Modules incorporate the latest technological advancements in Color Changing LED technology to deliver a variety of color options with maximum lumen output. Ideal for many common indoor and outdoor applications, and can be attached to most surfaces with adhesive backing and screw mount.

Features:

Module Spacing: 2", 4", 6"
Input Voltage: 12V
Lumens Output: 60 lm per watt
LED Angle: 120º
Dimming: Dimmable thru RGB controller
Lead Wire: 24"
Custom length per inch
Peel and stick adhesive back or screw mount
Ideal for concealed lighting, back lighting, signage and letter lighting
Lamping
0.72W per module

Specifications:

INPUT VOLTAGE: 12V DC
POWER CONSUMPTION: 0.72W per module
LUMEN OUTPUT: 60 Lumens per Watt
DIMMING: Dimmable thru RGB controller
WEIGHT: 5g each module
CONNECTOR: Four pigtail wire
HOUSING: PVC
LED TYPE: 5050 SMD Tri Chip (3x3)
LED ANGLE: 120º
IP RATING: IP65 not including connection
MAX RUN: 50 modules (3A)
LUMEN MAINTENANCE: 40,000 Hours
