Core Lighting LSD50-RGB-12V

LSD50-RGB-12V Product Description

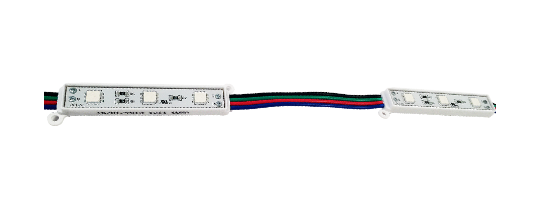

The LSD-50RGB Mini Modules incorporate the latest technological advancements in Color Changing LED technology to deliver a variety of color options with maximum lumen output. Ideal for many common indoor and outdoor applications, and can be attached to most surfaces with adhesive backing and screw mount. Capable of producing 60 Lumens per Watt with very little heat. UL listed.

Features:

12V DC
60 Lm/W
0.72W Per Module
LED modules sealed to IP65 standards
Low Voltage, Energy-efficient
Field cuttable (between modules)
Peel and stick adhesive back or screw mount
Ideal for concealed lighting, back lighting, signage and letter lighting

Specifications:

Input Voltage: 12V DC
Power Consumption: 0.72W per module
Lumen Output: 60 Lumens per Watt
Dimming: Dimmable thru RGB controller
Weight: 5g each module
Connector: Four pigtail wire
Housing: PVC
LED Type: 5050 SMD Tri Chip (3×3)
LED Angle: 120º
IP Rating: IP65 not including connection
Max Run: 50 modules (3A)
Lumen Maintenance: 40,000 Hours
