Core Lighting LFS-2412MX-22K/25K-24V

LFS-2412MX-22K/25K-24V Product Description

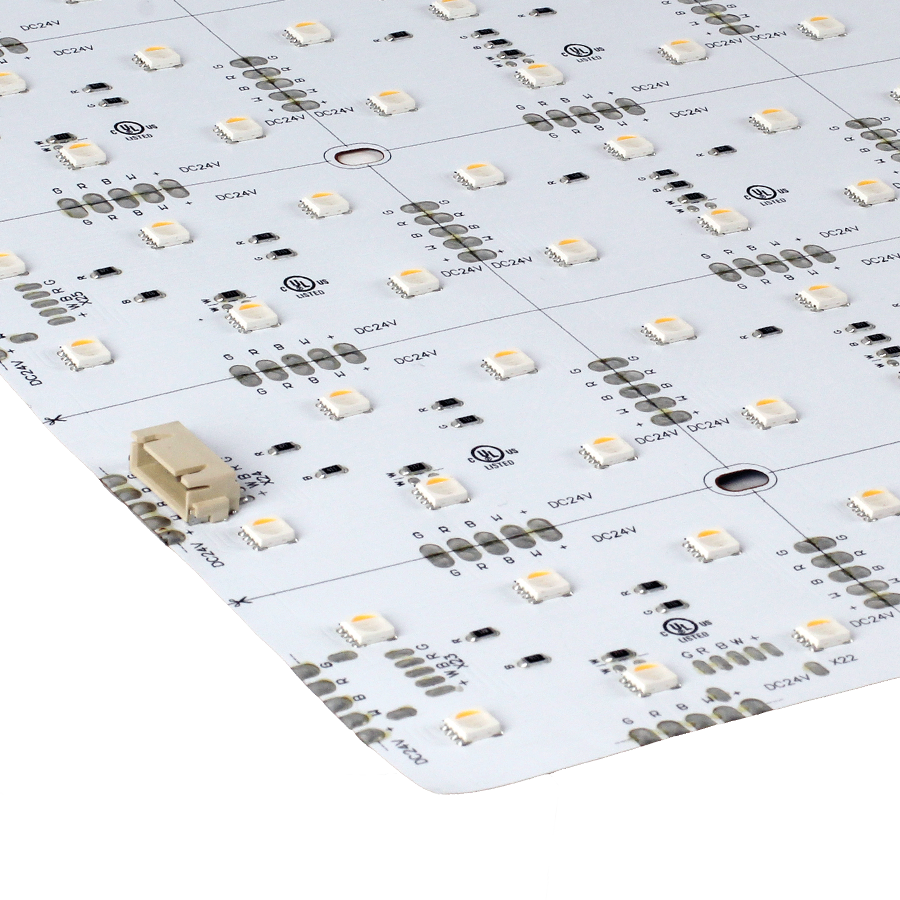

The LFS-2412MX is a flexible LED sheet featuring color-controllable tuning for every panel. Color temperatures range from warm 2200K to cool 6000K. A maximum of 4 LED panels can be connected. Rated to last 50,000 hours.

Specifications:

Manufacturer: Core Lighting
SKU: LFS-2412MX-22K/25K-24V
INPUT VOLTAGE 24V DC
POWER CONSUMPTION 32W per sheet
LEDs PER SHEET 576
MIN CUTTABLE LENGTH 76.2MM X 50MM
OPERATING TEMPERATURE -20ºC~60ºC
TOTAL CURRENT 1.92 A
HEAD VOLTAGE 23.85 V
TAIL VOLTAGE 23.68 V
HEAD CURRENT 40.6 mA
TAIL CURRENT 39.8 mA
HEAD TO TAIL VOLTAGE DROP RATE 0.72%
HEAD TO TAIL CURRENT DROP RATE  2.0%
DIMENSIONS 610MM x 305MM (W x H)
Color Temp A: 2200K
Color Temp B: 2500K
