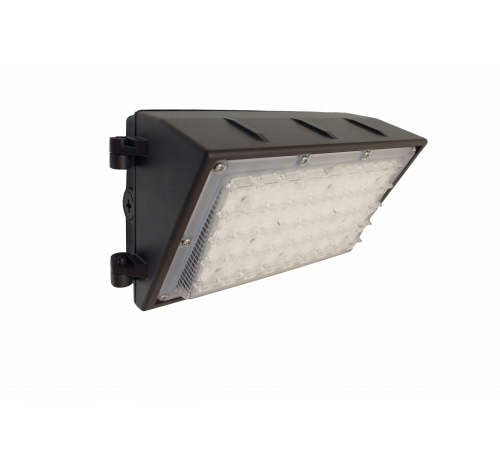

Westgate 28W Small Dark Bronze LED Non-cutoff Wall Pack With Optic Lens 120~277V AC
WML2-28W-30K-HL-SM
SPECIFICATIONS:
Wattage: 28 W
Voltage: 120~277 VAC /60 Hz
Power factor: 0.95
Efficacy: 121 LM/WDie-cast aluminum housing
Powder Coat finish (Dark Bronze)
Same footprint as traditional HID wall packs
Includes mounting hardware
Four 1/2” hubs: 1 top, 1 on each side, 1 rear
Operating temperature: -40°F to 104°F
Lifespan: 70,000 hr.
IP Rating: IP65Dimming: 0~10V dimmable
Lens: Polycarbonate Optic Lens
LED Chip: Philips Lumileds LEDs
Color rendering index: >80
Dimensions: 10"(W) x 5-3/4"(H) x 5-1/2"(D)
Warranty: 7 years
OPTIONS:
28W - 3500LM Lumen - 3000K - WML2-28W-30K-HL-SM
28W - 3640LM Lumen - 4000K - WML2-28W-40K-HL-SM
28W - 3780LM Lumen - 5000K - WML2-28W-50K-HL-SM
APPLICATIONS:
Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas
Wattage: 28 W
Voltage: 120~277 VAC /60 Hz
Power factor: 0.95
Efficacy: 121 LM/WDie-cast aluminum housing
Powder Coat finish (Dark Bronze)
Same footprint as traditional HID wall packs
Includes mounting hardware
Four 1/2” hubs: 1 top, 1 on each side, 1 rear
Operating temperature: -40°F to 104°F
Lifespan: 70,000 hr.
IP Rating: IP65Dimming: 0~10V dimmable
Lens: Polycarbonate Optic Lens
LED Chip: Philips Lumileds LEDs
Color rendering index: >80
Dimensions: 10"(W) x 5-3/4"(H) x 5-1/2"(D)
Warranty: 7 years
OPTIONS:
28W - 3500LM Lumen - 3000K - WML2-28W-30K-HL-SM
28W - 3640LM Lumen - 4000K - WML2-28W-40K-HL-SM
28W - 3780LM Lumen - 5000K - WML2-28W-50K-HL-SM
APPLICATIONS:
Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas
