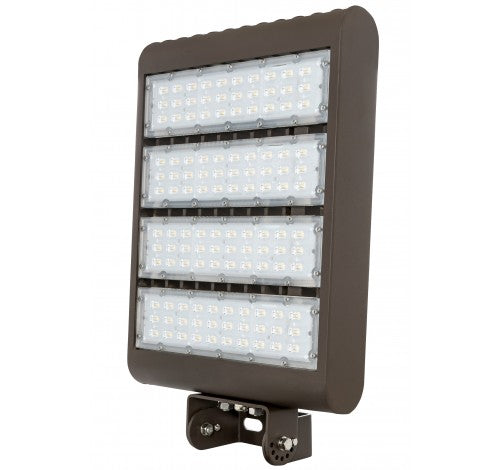

Westgate Lighting LF3-220CW-480V

LF3-220CW-480V Product Description

Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas, residential areas, balcony, terrace, small shops.

SPECIFICATIONS :

Wattage: 220W
Voltage: 480V
Input current: 1.8A Max
Other wattages: 150W, 300W
Power factor: PF20.90
Output voltage: 36-60VDC
Output current: 4.4A
Driver efficiency: 88%
Die-cast aluminum with powder coat finish (White)
Operating temperature: -30 - +40 °C
Lifespan: 50000 Hrs.
IP rating: IP65, Wet Locations
100% dip-tested under load
Main Structure: aluminum + Optical Lens
Storage temperature humidity: -40 - +80 °C, 10-90% RH
Dimmable
LED type/brand: SMD 3030/ Philips Lumileds LEDs
Color temperature: 5000K
Color rendering index: >80 Beam angle: 120x90
Luminance: 16423 LM
Luminous Efficiency: 98 Lm/W (DLC)
LED quantity: 160 PCS
LED efficacy: 120Lm/W
SAFETY & EMC:
Safety norms: UL1598, UL8750, EN60598, EN61347-2-13, EN62031, EN62471
Withstand voltage: 1/P-FG: 2121VDC
Grounding resistance: $0.5.2,OK
Electromagnetic compatibility: EN55015, EN61000-2-3, EN61000-3-3, EN61547 . Gross weight: YK 12.5lbs TR 13lbs SF 7.41bs MA 14lbs
Dimensions: 12-1/2"(W) X 12-1/2" (H) x 2-1/2"(D) 22" W
Warranty: 5 years

APPLICATIONS :

Ideal for general site lighting, alleys, loading docks, doorways, pathway, parking areas. Replace existing HID flood lights/wall packs Great for use with motion sensors or other instant on/off controls. Solid state lighting technology for long life, low maintenance and high efficiency.
