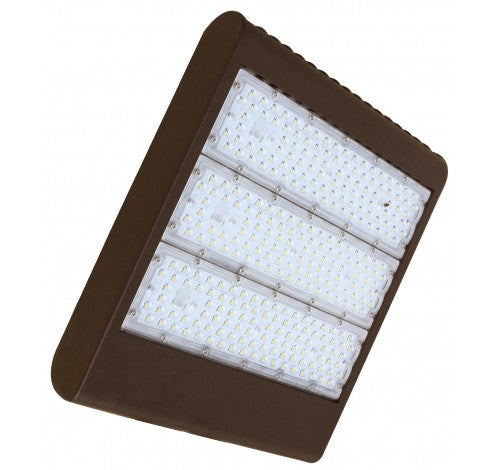

Westgate 230W Led High-Lumen DLC Premium LF3 Flood Light Series 480V

LF3-HL-230W-40K-480V
$515.74
-
+
$515.74
SPECIFICATIONS:

Wattage: 230W
Voltage: 480V
Efficacy: 130LM/W ~ 134LM/W
Power factor: >0.90
THD: <20%
Die-cast Aluminum housing with powder coat finish (Dark Bronze)
Operating temperature: -40°F to 104°F
Lifespan: 70,000 hr.
IP Rating: IP65
Effective projected areas (EPA’s) are:
Front = 0.38 square feet
Side = 0.40 square feet
Face = 1.45 square feet
Dimmable: 0~10V Dimming
Lens: TYPE III TIR optic Lens
LED: Philips Lumileds Luxeon 3030 High flux LED
Solid state lighting technology for long life, no maintenance needed and high-efficiency
Cord type: 6’ SJTW 18/3 AWG cable
Color rendering index: 82~84
Beam Angle: 120°x90°
Dimensions: 18-1/2"(H) x 12-5/8"(W) x 3-1/2"(D)
Warranty: 7 years

OPTIONS:

230W - 31000LM Lumen - 4000K - LF3-HL-230W-40K-480V
230W - 31000LM Lumen - 5000K - LF3-HL-230W-50K-480V

APPLICATIONS:

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
Please email us with the products you need and the desired quantity at buyriteelectric@gmail.com
