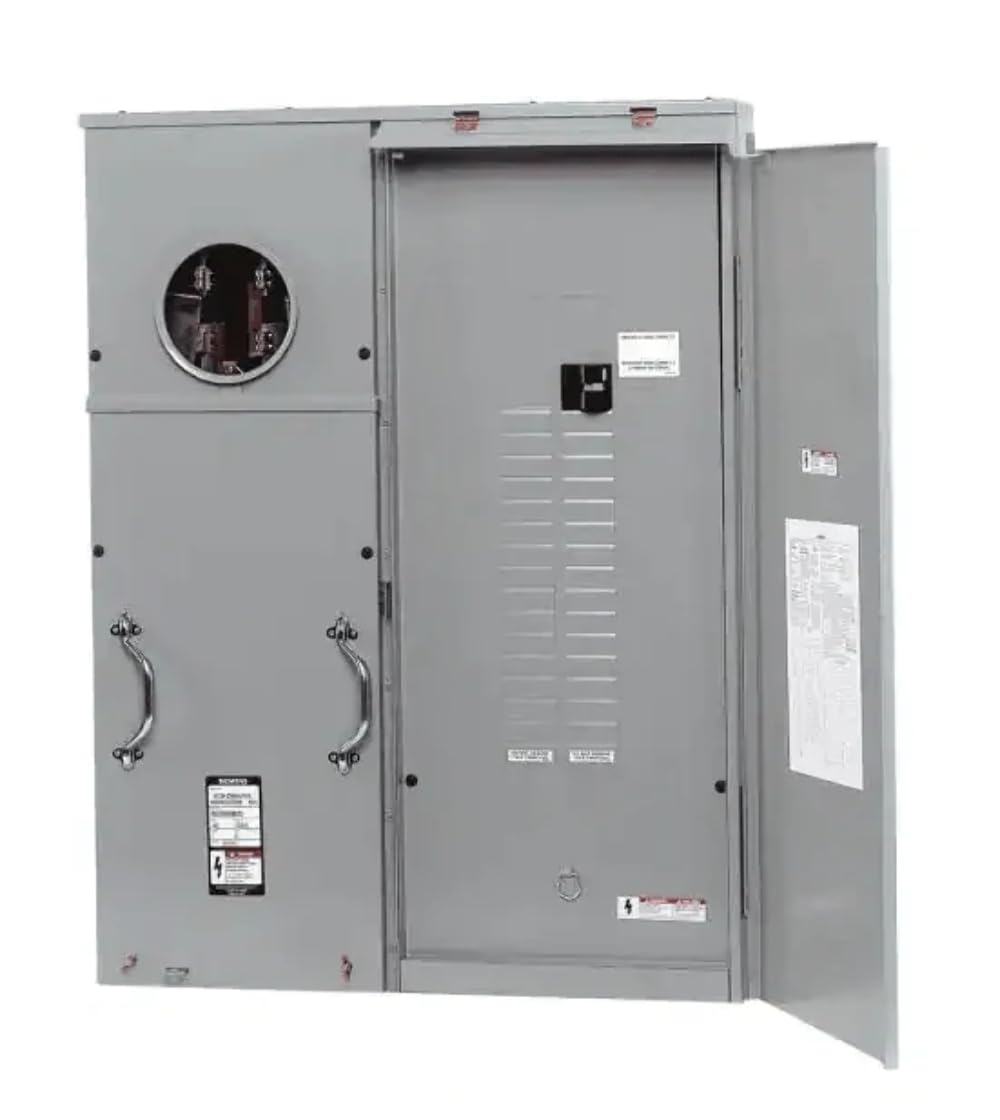

Siemens MC3042S1400SC 400-Amp 30-Space 42-Circuits Meter Solar Ready Load Center Combination
MC3042S1400SC
Introducing Siemens Low Voltage Meter Load Center Combinations – your one-stop solution for safe and efficient electrical power management. These units are designed for easy installation, long-lasting quality, and versatility.
Key Features:
Meter Main: Combines meter socket and main breaker.
Meter Combination Load Center: Includes socket, main breaker, and load center interior.
Solar Ready: Cost-effective construction for regions without EUSERC regulations.
Highlights:
Corrosion Protection: Powder coating with polyester paint for a clean finish.
Capacity: 400 Amp, accommodating up to 42 circuits.
Underground Feed: Designed for underground feed setup.
Easy Access: Side hinge door easily removable with one screw.
Safety: Pad locking provisions on all devices.
Compliance: UL Listed, EUSERC and CA Title 24 for certain models.
Specifications:
Size: Depth 7.5", Height 39.6", Width 39.3"
Type: Load Center Combination
Mounting: Surface
Amperage: 400 Amp
Voltage: 240 Volts
Circuits: 42
Warranty: 1 Year
Includes: 200A factory-installed main breaker
Provision for a 200A (max) field-installed additional main disconnect (Optional)
