ELCO Lighting EL312CT3W

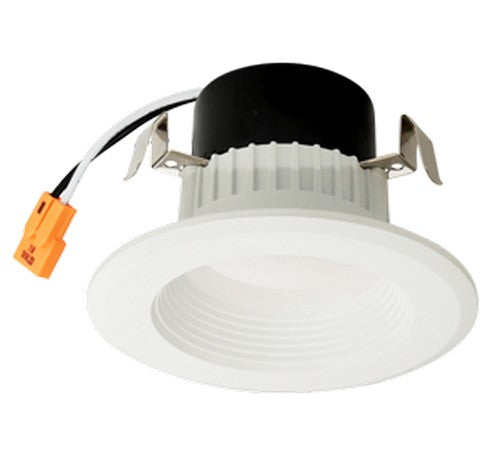

EL312CT3W Product Description

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

Fits ELCO 3′′ Dedicated LED Recessed Housings for New Construction and Remodel.
Soft white lens provides smooth lumen distribution and eliminates LED pixelation.
Deep set LED trim reduces glare while providing area illumination.
Diecast construction provides lasting durability.
CA Title 24, ENERGY STAR, JA8-2016-E.
Lifespan of 50,000 hours L70.

SPECIFICATIONS :

Wattage : 9W
Lumens : 675 lm - 700 lm
Voltage : 120V
Color Temp. : 2700K - 3500K
Dimmable : Triac/ELV
Lamp Type : LED
Beam Angle : 90°
CRI : 93+
Wet Location : Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Quick connect for use with ELCO housings EL390ICA, EL390RICA, EL39FICA.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintenance of 50,000 hours L70 life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

Labels and Listings:
UL Listed 1598 Luminaire
UL Listed for Wet Location
RoHS Compliant
ENERGY STAR® Certified
California Title 24 JA8-2016-E
