Arlington 451

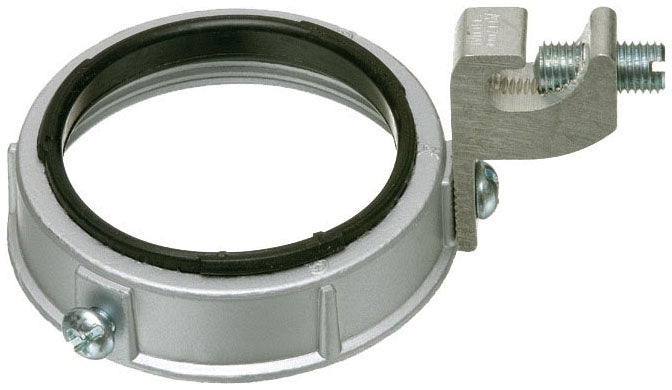

451 Product Description

Arlington’s 3/4" insulated metal grounding bushing. Threaded. C-clamp grounding lug is dual rated for copper and aluminum. Made of zinc die-cast, it is rated for 150° C. Minimum size ground is 14 gauge and max wire size is 4 gauge.

Specifications:

Brand: Arlington
Part Number - 451
Threaded Type
Die Cast Zinc Material
0.52 Inch; 14 to 4 AWG Wire Size
Copper/Aluminum Conductor Material
UL, CSA Approval
3/4 Inch Trade Size
Insulated Throat Type
C-Clamp Lug Type
Temperature Rating 150 Deg C
Overall Length 2.082 Inch

About Arlington:

Arlington Industries, Inc. was founded in 1949, and in its early years served the electrical industry as a regional supplier of zinc die cast fittings. The company was acquired by its present owners in 1956. Since, Arlington has become a leading manufacturer of traditional metallic and non-metallic fittings and connectors - while remaining an industry leader in the development of unique and innovative electrical and communications products.
