American Lighting HTL-COB-NW-CC

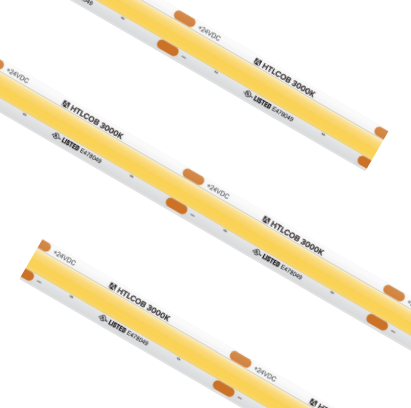

HTL-COB-NW-CC Product Description

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium
seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

• Seamless COB design that eliminates virtually all LED dotting
• Available in 2700K, 3000K, 3500K, 4000K, and 5000K
• 90+ color rendering index
• Lumen output ranging from 349Lm to 448Lm per foot
• Cuttable every 1.97” with 16.4ft max run
• Easy installation featuring 3M VHB adhesive backing
• Available in IP20 uncoated, IP54 coated, and IP65 Jacketed
• Dimmable (5-100%) with most ELV, TRIAC dimmers
• cULus Listed for indoor dry (IP20) or wet (IP65) locations
• JA8 Compliant
• 50,000 hours rated life
• Suitable for use in closets when used in an enclosed extrusion
based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

Specifications:

LENGTH Custom Cut
VOLTAGE 24V DC
WATTAGE 4.5W / ft
LUMENS Up to 413Lm / ft
CCT OPTIONS 3500K
CRI 90+
MAX RUN 16.4ft
CUTTING POINTS 1.97” (50mm)
IP RATING IP20 - Uncoated / IP65 - Jacketed
DIMMING TRIAC / ELV (5-100%)
DIMENSIONS 0.39” (10mm) W x 0.09” (2.5mm) H
BEAM ANGLE 120°
OPERATING TEMP 5°C (41°F) to 70°C (158°F)
CERTIFICATIONS cULus Listed - Dry Locations (IP20) & Wet Locations (IP65)
RATED LIFE 50,000 Hours
