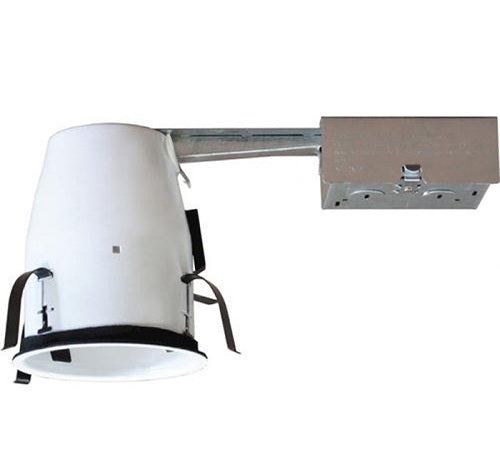

4''LED Recessed Can Remodel IC/Air Tight LS-4R-IC-AT

2 sold in last 8 hours

LS-4R-IC-AT

$10.00
$10.00
customers are viewing this product

SPECIFICATIONS:

Sizes:
Size 1 4 3/4” x 12 3/4"
Size 2 6 1/4” x 4”

Housing:

Single wall Painted Steel Housing gasket for IC / Air Tight in Insulated Ceiling
Housing can be adjusted for ceiling thickness up to 1-3/3/8”

Junction Box:

Listed For Trough Branch circuit wiring
Contains seven 7/8” knockouts and four Romex playouts with romex cable clamp Ground wire provided on J-Box.

LED Engine:

10~ 100 Dimmable with most dimmers.
Heat Sink and aluminum board for low heat
operation of high power LED chip
Range of 3000k or 4000k color temp , 82 CRI
Produces 565~ 801 lumen output from Luminaire operating by 350mA connect.
Use 1.2 W High Power LED

LED Power Supply Driver
Class 2 constant current LED Driver 350mA
For 120v, 50-60Hz
Driver installed on junction box door for easy access from below ceiling

Quick Connect PUSH TERMINAL
Three QUICK CONNECTORS for fast easy wiring.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
