Westgate RHLED1-MV

RHLED1-MV Product Description

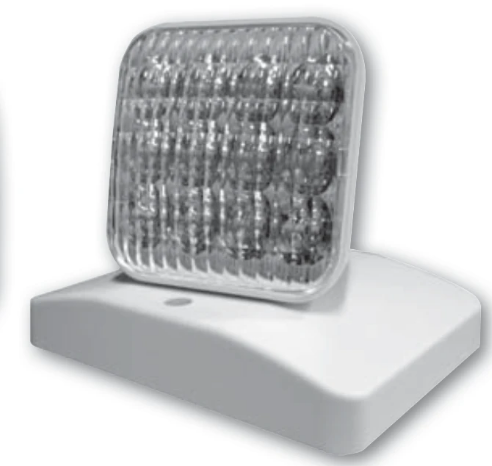

LED MR16 Remote Single Head Indoor Use

SPECIFICATIONS:

ILLUMINATION:
• Long lasting, efficient ultra-bright white LED lamp heads.
• High-performance chrome-plated metalized reflector and
plastic lens with 8 or 12 LED’s in each lamp head on
standard and HL models. LP models with unique all inclusive
lamp, reflector and lens assembly.
• Adjustable LED lamp heads increases center-to-center
spacing.

ELECTRICAL SPECIFICATIONS:
• Powered from low voltage power source with low voltage
wiring (not provided).

MOUNTING SPECIFICATIONS:
• Universal mounting base mounts to single-gang switch box.
• Distance of maximum run is determined by system voltage,
wire gauge and total maximum wattage on the run.
• Suitable for wall or ceiling mount.

HOUSING SPECIFICATIONS:
• Indoor application remote heads are injection-molded,
engineering-grade, 5VA flame retardant, high-impact
resistant, thermoplastic in white or black finish.

WARRANTY/LISTING:
• Five year warranty on electronics and housing.
• UL listed with approved Best Lighting Products.
• Meets UL924, NFPA 101 Life Safety Code, NEC,OSHA,
Local and State Codes.
