Westgate EL-WP

EL-WP Product Description

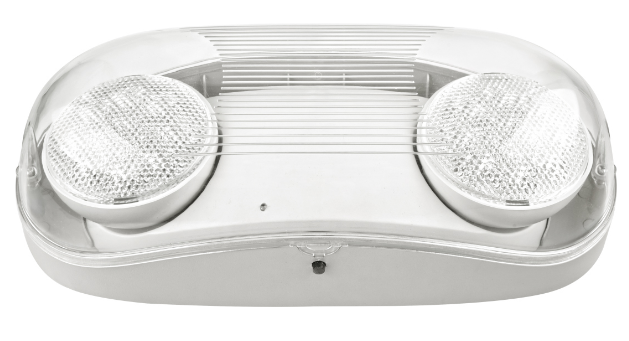

Wet Location Led2-Head Emergency Light

SPECIFICATIONS:

Electrical:
• Voltage: 120-277V / 50-60Hz
• Power Factor: >0.90
• Wattage: 6W Per Head
• Efficacy: 76 LPW

Lighting:
• 2X12 pcs Super Bright 2835 0.5W LED Lamp Heads for
Emergency Mode, Provide More than 400LM Output
• Improved Beam Control for Increased Spacing and
• Illumination
• Total Lumens: 454LM
• Color Temperatures: 6151K
• Built-in 3.6V 2000mAh Nickel Cadmium Battery for
Minimum 90 Minutes Emergency Operation

Mechanical:
• Mounting: wall mounting with KO’s in Back Plate
• Universal J-box Mounting Pattern
• Maximum 24 hours for Full Recharge Time
• Test Switch and Charge Indicator
• Operating temperature: 68-122°F
• Rated life: 90-minute rated
• White Finish
• IP 65, Indoor Use only

APPLICATIONS:
Emergency lighting is designed to provide sufficient
illumination in the event of a mains power failure.
Modern emergency lighting is installed in virtually
every commercial and high occupancy residential
building. Most building codes require that they be
installed in older buildings as well.

Warranty:
3-Year Warranty
