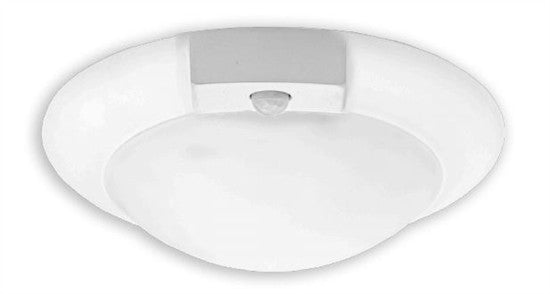

Westgate DLS6-MCT-PIR

DLS6-MCT-PIR Product Description

Disk lights have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

FEATURES :

Die-cast Aluminum. Powder-Coated
Unique DOB (Driver On Board) LED Board Enclosed in Clear PC Cover for Better Wet Location Performance.
Integrated PIR (Passive Infra Red) Motion Sensor
Closed Cell Neoprene Foam Gasket
Multi CCT (Selectable Switch on LED Board Under the Lens)

SPECIFICATION :

Electrical:
Voltage: 120V AC
• Power Factor: >0.90
• Wattage: 15W

Mechanical:
White Finish
Die-cast Aluminum. Powder-Coated
Gasket: Closed Cell Neoprene Foam Gasket
Fits on 4”Octagonal (4O) or 3”Octagonal (3O) Electrical Boxes
Recessed Mounting Kit Included for Recessed/Retrofit Installation
Maximum Ambient Temperature: 104°F
Rated life: 50,000 hrs
Sensor Hold Time: 30s
Sensor Mounting Height: 16.4FT maximum
Sensor Detection Angle: 120°

Lighting:
Lens: White Translucent Acrylic
LED: Unique DOB (Driver On Board) LED Board
Enclosed in Clear PC Cover for Better Wet Location
Performance
Dimming: TRIAC Dimming (Using Standard TRIAC
LED Dimmers)
Total Lumens: 1000LM
Color Temperatures: 3000K/ 4000K/ 5000K
Multi CCT (Selectable Switch on LED Board Under the Lens)
Color Rendering Index: CRI ≥ 90
5-Year Warranty
