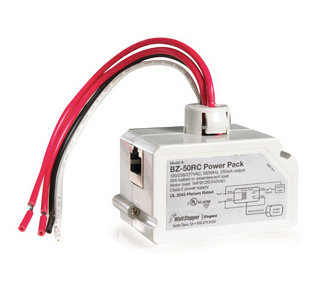

Wattstopper BZ-50RC
BZ-50RC Product Description
The BZ-50 Universal Voltage Power Pack provides 24 VDC operating voltage to Wattstopper’s low-voltage occupancy sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant.
Specifications:
Color Gray
Product Series BZ
Type Power Pack
Material ABS
Application Sector Commercial
Product Line Wattstopper
Installation Location Ceiling
Warranty Type 5-Year
UPC Number 754182923496
Dimensions
Product Depth US 1.7 in
Product Height US 2.2 in
Product Volume US 28.1 cu in
Product Width US 2.8 in
Product Weight US 0.3 lb
Technical Information
Wire Connection Type RJ-45
Connection Type Wired
Indoor/Outdoor Indoor
Input Voltage 120/277 VAC, 230/240 VAC
Line Frequency 50 Hz, 60 Hz
Mounting Type 1/2 in Knockout
Operating Temperature 32°-104°F
Operating Temperature Max 104 °F
Operating Temperature Min 32 °F
Operating Humidity 5-95% RH (Non-Condensing)
Output Voltage 24 VDC
Wire Gauge 18-22 AWG
Features:
Efficient switching power supply providing optimized current output based on number of sensors
LED indicates status of relay or if there is a low-voltage overcurrent
The product meets the materials restrictions of RoHS
Zero crossing circuitry for reliability and increased product life
UL 2043 plenum rated for cost-effective installation
1/2”” snap-in nipple attaches to standard electrical enclosures through 1/2”” knockouts
