Utopia Lighting LHB-2G LED High Bay 120-277V
2
sold in last
8
hours
LHB-2G-105LED/40K-UNV-DM
$166.17
customers are viewing this product
PRODUCT DESCRIPTION

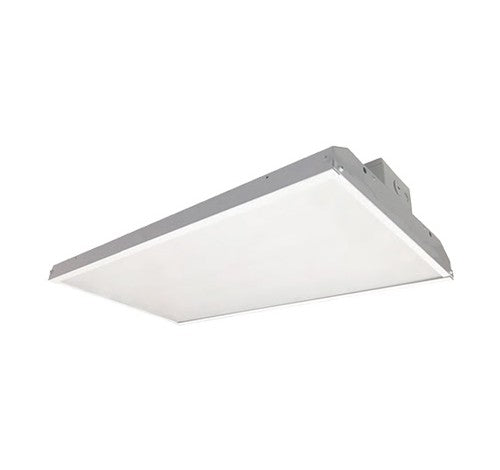

The LED High Bay is the lighting solution for a wide variety applications that require specific mounting heights. Precision-designed optics, multiple distributional options, lumen outputs and color temperatures choices make the energy-efficient LHB the ideal resolution for industrial, commercial and other high bay applications.
FEATURES:
Die formed, cold-rolled, heavy gauge steel galvanized housing.
Acrylic lens.
Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
MOUNTING:
Suspended (chain or adjustable cable), surface mounting and pendant stem mounting.
V-hook and 40” chain provided.
Optional pendant monopoint box with side cover, surface mounting brackets.
LED
Seoul Semiconductor LED.
Color Temperature: 4000/5000 (K)
LED module: High efficiency up to 130 LPW.
Color Rendering Index: Ra > 80
Service life: Greater than 70,000 hours.
Poke in wire connectors.
Calculated L70 : 122,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming control: 10~100% (std.), 0-10V dim.
To find an approved dimmer switch, please see table1.
Power Factor: + 0.9, Class 1 or Class 2 circuit.
Efficiency: +87%
Ambient Operating Temperature: -4°F (-20°C) ~ 122°F (50°C), optional -4°F (-20°C) ~ 131°F (55°C) available.
10kA/10kV level of surge protection available (optional).
ELCU-200
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system..
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits..
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
DLC listed. (premium)
Suitable for damp locations.
ARRA compliant (optional).
5 years limited warranty.
FEATURES:
Die formed, cold-rolled, heavy gauge steel galvanized housing.
Acrylic lens.
Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
SPECIFICATIONS:
MOUNTING:
Suspended (chain or adjustable cable), surface mounting and pendant stem mounting.
V-hook and 40” chain provided.
Optional pendant monopoint box with side cover, surface mounting brackets.
LED
Seoul Semiconductor LED.
Color Temperature: 4000/5000 (K)
LED module: High efficiency up to 130 LPW.
Color Rendering Index: Ra > 80
Service life: Greater than 70,000 hours.
Poke in wire connectors.
Calculated L70 : 122,000 hours
ELECTRICAL
High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
Dimming control: 10~100% (std.), 0-10V dim.
To find an approved dimmer switch, please see table1.
Power Factor: + 0.9, Class 1 or Class 2 circuit.
Efficiency: +87%
Ambient Operating Temperature: -4°F (-20°C) ~ 122°F (50°C), optional -4°F (-20°C) ~ 131°F (55°C) available.
10kA/10kV level of surge protection available (optional).
ELCU-200
Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
Interfaces with fire alarm panel or security system..
“Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
UL listed for use in emergency circuits..
LISTING
UL/CUL listed and labeled.
Listed to UL 1598 and UL 8750.
DLC listed. (premium)
Suitable for damp locations.
ARRA compliant (optional).
5 years limited warranty.
