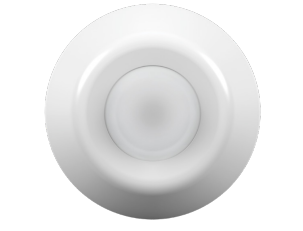

PLC Multipoint OCS-250-2

OCS-250-2 Product Description

Cadence line voltage photocell and daylight harvesting sensors provide a
compact control solution without requiring a powerpack. Basic on/off units are
capable of directly switching lights off when ambient levels are high enough that
desired overall light levels will be still be maintained. Lights will be switched
back on once ambient level falls below the desired setpoint.

Units with the daylight harvesting (dimming) option track a space’s overall
illumination and dim connected lighting to achieve energy savings. During times
of high daylight contribution to a space, controlled artificial lighting will be
gradually dimmed to a minimum dimmed level. During times of no or low daylight
contribution, controlled artificial lighting will increase back up to its maximum
level. The sensor can also be configured to switch lighting off completely in
maintained high daylight conditions. Additional configurable parameters include
high & low trim levels and fade rates.

All photocells provide the option of selecting the ambient light threshold (e.g.,
setpoint) from a range of preset values or running an auto-selection mode where
the unit will determine the setpoint based on the measured amount of light it is
controlling.

Specifications:

Manufacturer: PLC Multipoint
SKU: OCS-250-2
Operating Voltage : MVOLT (120-277 VAC)
Weight: 4.75 oz
Color: White
Size: 4.00” Diameter x 1.25” H (10.16 x 3.17 cm)
Dimming Capacity: 50mA
Mounting Style: Mud Ring w/ 2.75” Spaced Ears 3.5” Trade Size Octagon Box

About PLC Multipoint:

For more than 30 years, PLC Multipoint has been making a name for itself as a creator and producer of the industry's finest lighting sensor controls and has earned a reputation as the go-to resource for solving the most complex lighting control challenges. PLC Multipoint’s product families include lighting control systems and daylighting sensors for a wide variety of applications.
