Panasonic VTX-DEDPV

VTX-DEDPV Product Description

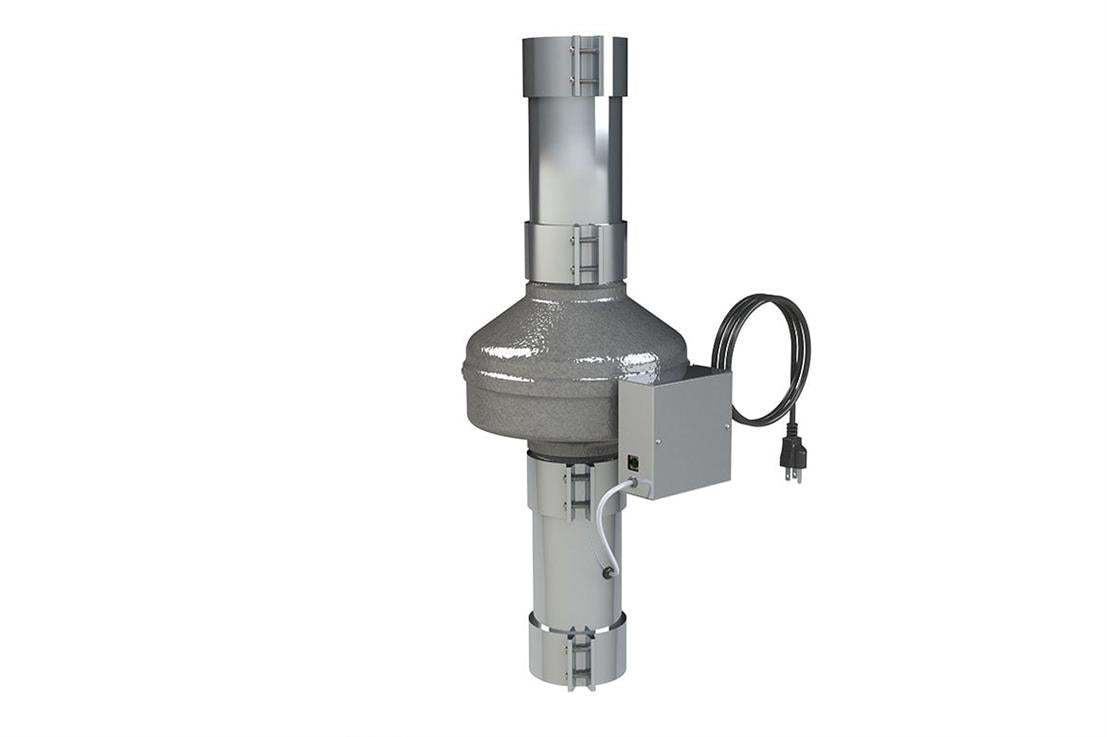

The Dryer Exhaust Duct Power Ventilator, DBF-DEDPV, solves problems caused by long duct runs on clothes dryers. By using the powerful ventilator homeowners in single and multi-family buildings can keep their dryer vents free of lint build-up.

Specifications:

Brand: Panasonic
Part Number: VTX-DEDPV
UPC: 628507102067
Motor Specifications
Motor Voltage: 120V AC 60Hz
Rated Power: 68 Watts
Max Current: 0.56 Amps
Operating RPM: 2,970
Max Static Pressure: 2.004" w.g.
Duct Diameter: 4 inches

Performance Data (Airflow CFM @ Static Pressure):
0" w.g.: 192 CFM
0.125" w.g.: 182 CFM
0.25" w.g.: 176 CFM
0.575" w.g.: 163 CFM
0.75" w.g.: 154 CFM
1" w.g.: 130 CFM
1.25" w.g.: 105 CFM
1.5" w.g.: 77 CFM
Max Pressure (2.004" w.g.): 50 CFM

Electrical Requirements
Power Supply: 120V AC, 60Hz only
Wiring: Requires dedicated circuit (0.56A max draw)

Safety & Compliance
Thermal Protection: Built-in fuse for fire safety

Certifications:
UL705 Listed
CSA C22.2 #113 Clause 12 (DEDPV standard)

Construction
Designed for 120V systems
All VTX products use motors specifically rated for U.S. electrical standards

Features:

LED indicator panel for operation status
Reduce drying times and energy consumption
Certified to UL 705 dryer exhaust duct power ventilator suitable for gas & electric dryers
All-metal housing with a powder coat finish ensuring long lasting rust protection
Automatically energizes when the dryer begins to operate. No user interaction is necessary
